DKIH-3352-102J footprint, schematic symbol and 3D model by SCHURTER

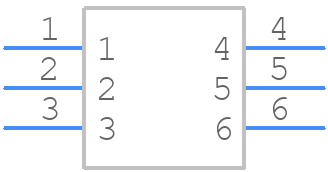

Symbol

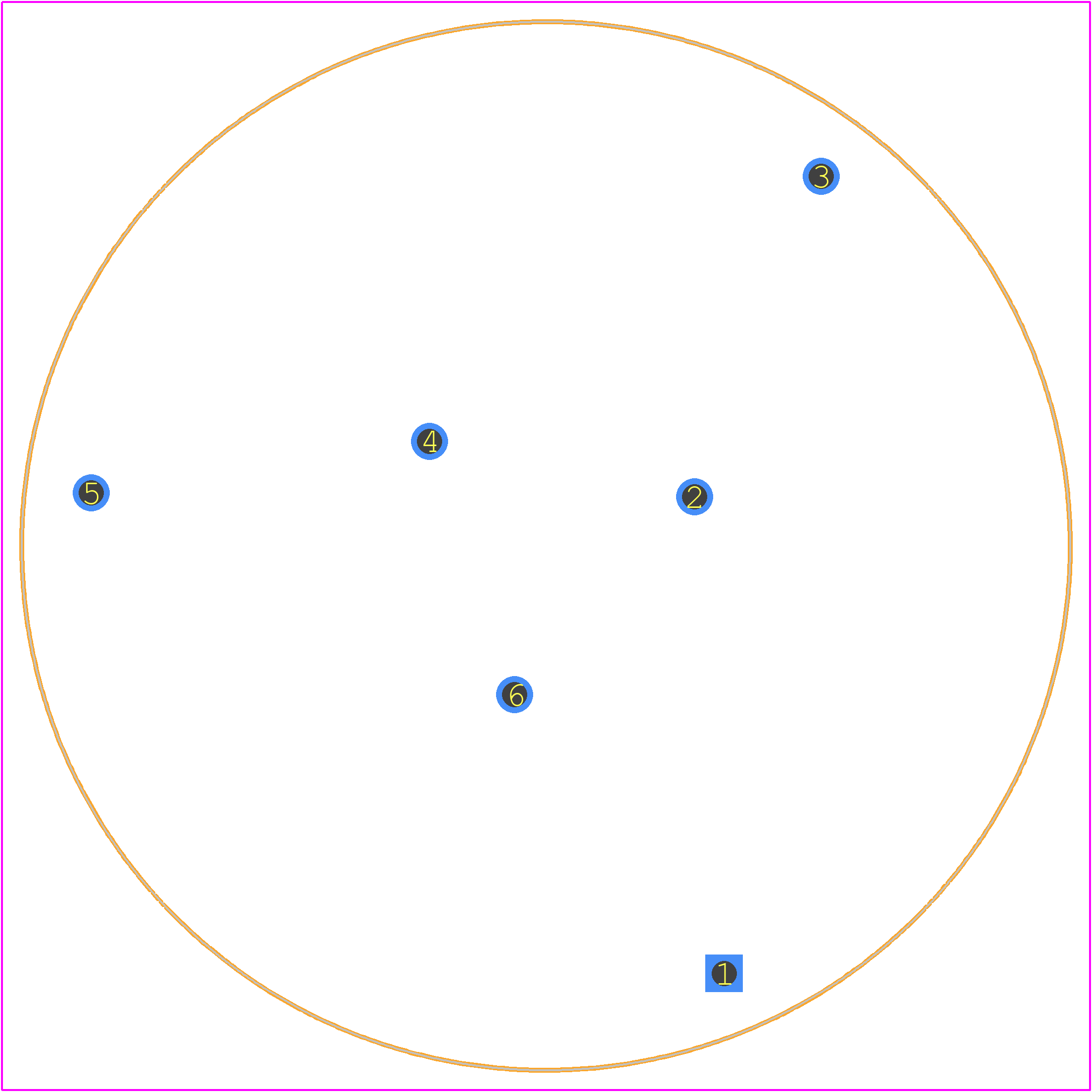

PCB Footprints

3D Models

DKIH-3352-102J Details

The recommended torque for the screw terminals of DKIH-3352-102J is 0.5 Nm to 1.5 Nm, as specified by Schurter.
Yes, the DKIH-3352-102J is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g amplitude, as per IEC 60068-2-6.
The operating temperature range of the DKIH-3352-102J is -40°C to 125°C, making it suitable for high-temperature applications. However, the fuse itself may have a lower temperature rating, so ensure compatibility with the specific fuse used.
The DKIH-3352-102J has a moisture resistance rating of IP40, which means it provides protection against solid objects larger than 1 mm, but not against water or moisture. For humid or wet environments, consider using a fuse holder with a higher IP rating or additional protection measures.
The recommended wire size for the screw terminals of DKIH-3352-102J is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
