Part Image

DKM10E-15 - Mean Well

Description: Module DC-DC 5VIN 2-OUT 15V/-15V 0.333A/-0.333A 10W 6-Pin DIP Module

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

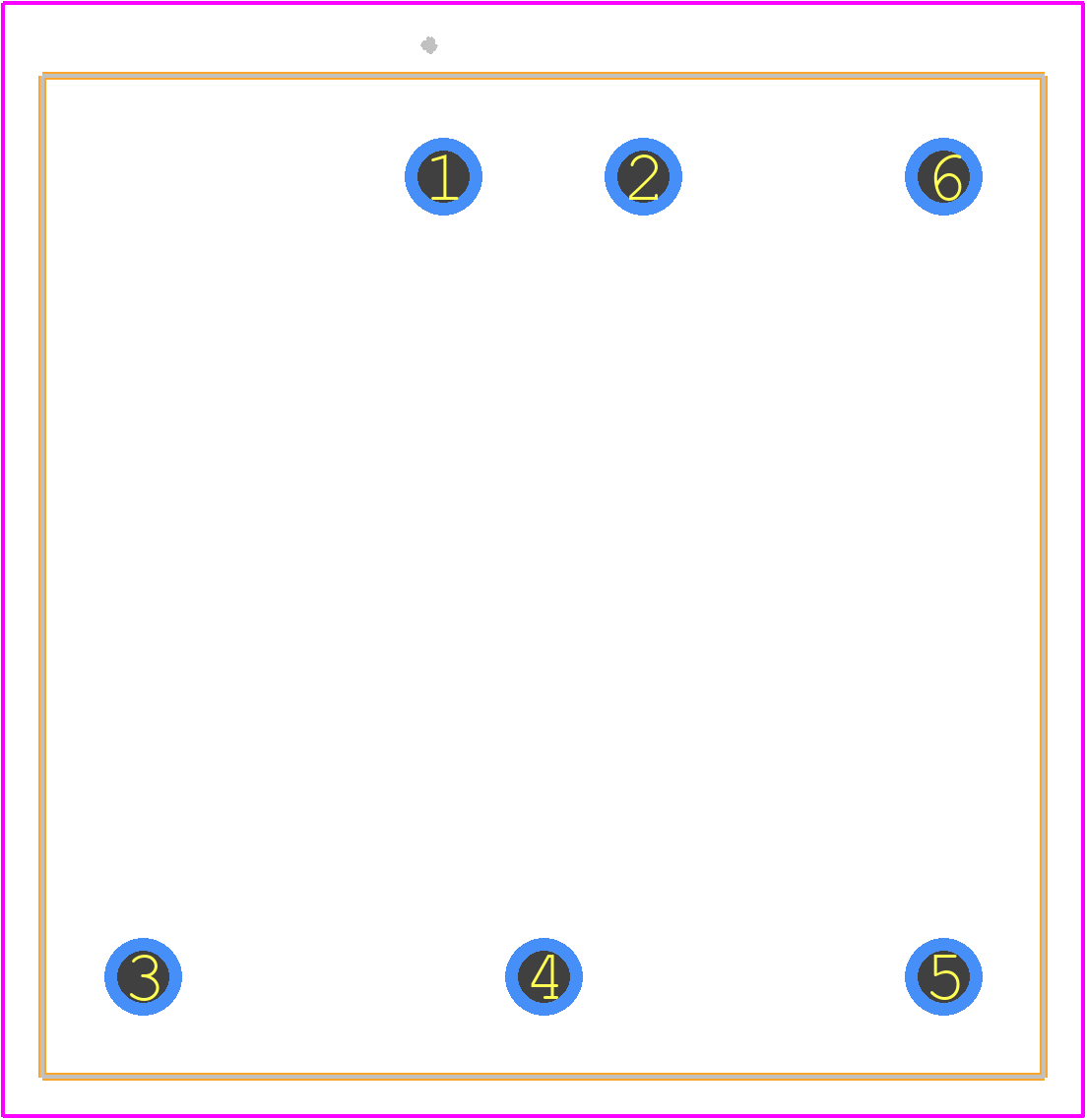

DKM10E-15 - Mean Well PCB footprint - Other - Other - DKM10E-15-6
click to zoom

3D Models

DKM10E-15 - Mean Well  - 3D model - Other - DKM10E-15-6
click to zoom

DKM10E-15 Details

  • Manufacturer Part Number:

    DKM10E-15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DMA,

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mean Well

  • Risk Rank:

    2.33

  • Samacsys Modified On:

    2020-07-29 06:26:51

  • YTEOL:

    7.1

  • Additional Feature:

    ALSO -15V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EAC, EN

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    87%

  • Height:

    10.7 mm

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XDMA-T6

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.333 A

  • Output Voltage-Max:

    15.225 V

  • Output Voltage-Min:

    14.775 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVERLOAD; OVER VOLTAGE; SHORT CIRCUIT; UNDER VOLTAGE

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    350 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

Sponsored

DKM10E-15 Overview

Use the download button to access the DKM10E-15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DKM10, or try a keyword search, such as Power Supply Modules
