DKMW15F-12 - Mean Well

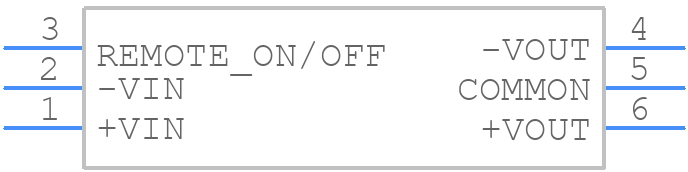

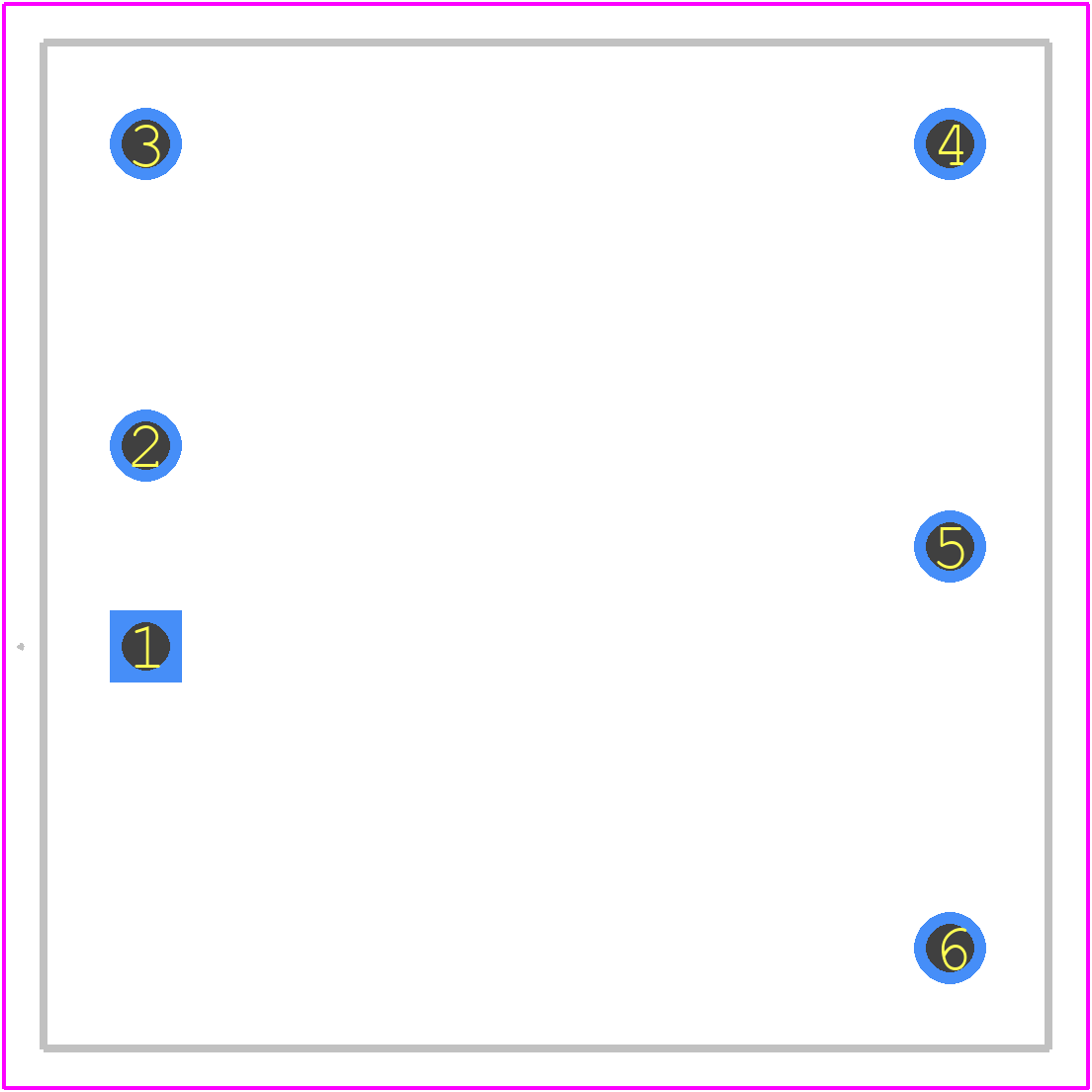

DKMW15F-12 Details

• Manufacturer Part Number:

  DKMW15F-12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-6

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-08-06

• Manufacturer:

  Mean Well

• YTEOL:

  6

• Additional Feature:

  -12V ADDITIONAL OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  BS, EN, EAC

• Efficiency (Main Output):

  88%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-MDMA-P6

• Length:

  25.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.625 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6LEAD,.8

• Package Shape:

  SQUARE

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0176 Vrms

• Seated Height-Max:

  11.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
