The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the DL5-260RW6B connector, but it's always best to consult the specific application and ITT Interconnect Solutions' guidelines.
Yes, the DL5-260RW6B connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
Yes, the DL5-260RW6B connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
The DL5-260RW6B connector has a mating cycle life of 500-1000 cycles, depending on the specific application and usage.
Yes, the DL5-260RW6B connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DL5-260RW6B Overview

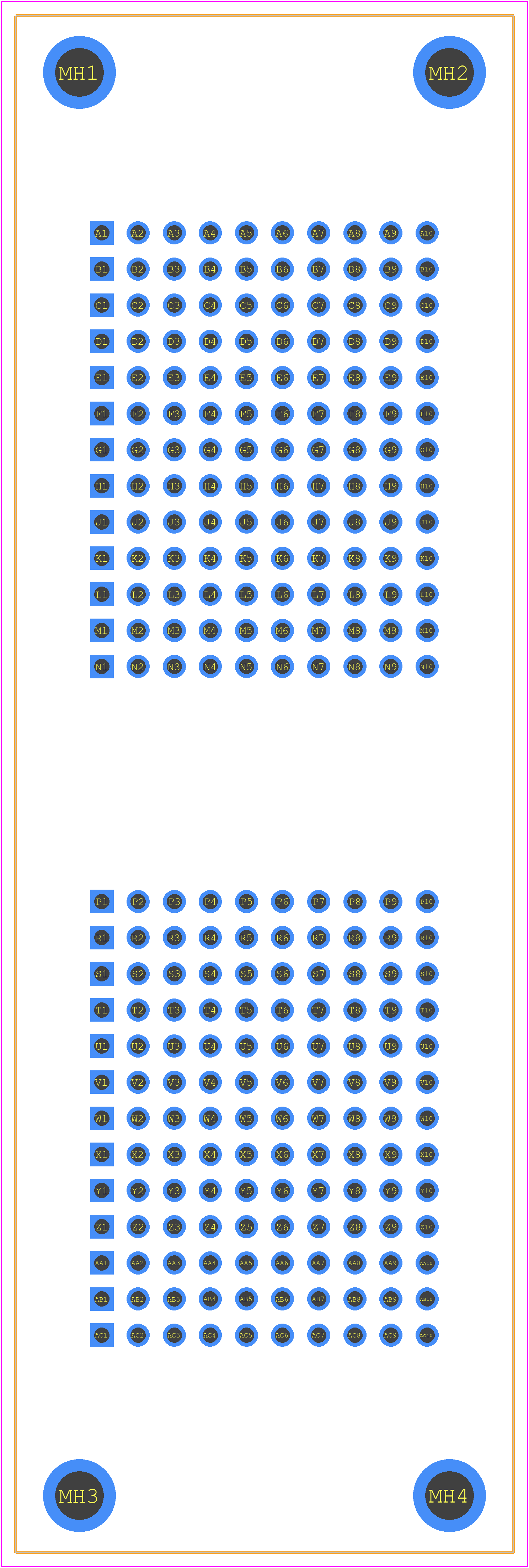

Use the download button to access the DL5-260RW6B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DL5-2,
or try a keyword search, such as Multiway Rack and Panel Connectors
