DLA100IM1200TZ-TUB - LITTELFUSE

DLA100IM1200TZ-TUB Details

• Manufacturer Part Number:

  DLA100IM1200TZ-TUB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

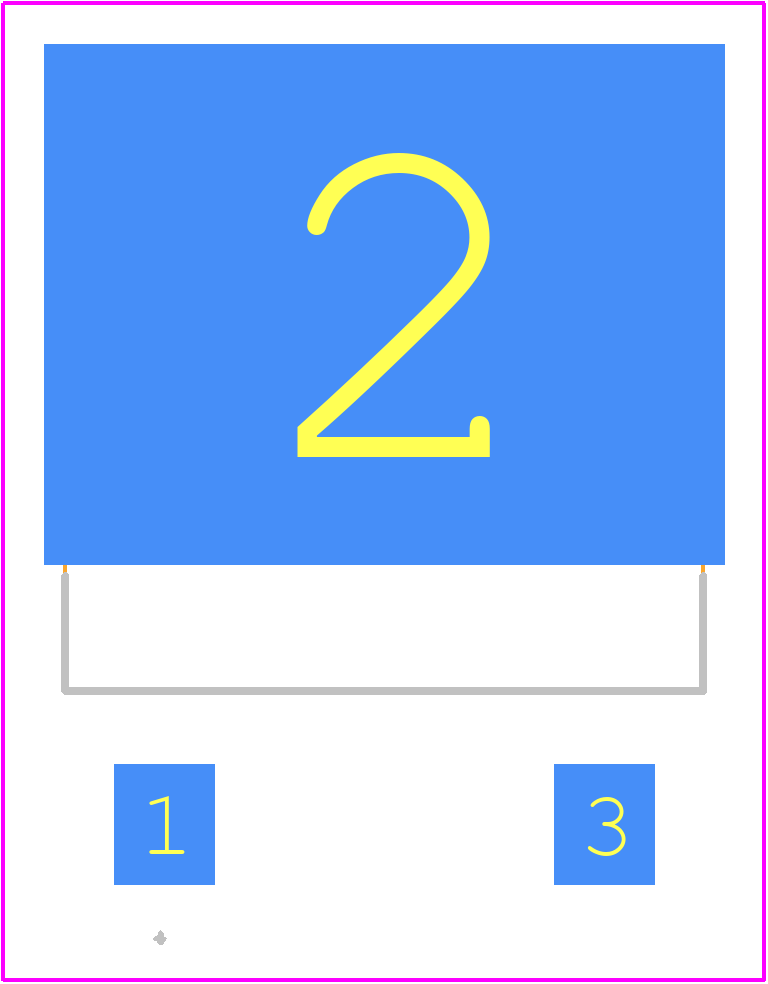

• Package Description:

  D3PAK, 2 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  7.05

• Additional Feature:

  LOW LEAKAGE CURRENT, PD-CASE

• Application:

  GENERAL PURPOSE

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.68 V

• JEDEC-95 Code:

  TO-268AA

• JESD-30 Code:

  R-PSSO-G2

• Non-rep Pk Forward Current-Max:

  1200 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  100 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Power Dissipation-Max:

  430 W

• Rep Pk Reverse Voltage-Max:

  1200 V

• Reverse Current-Max:

  20 µA

• Reverse Test Voltage:

  1200 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE
