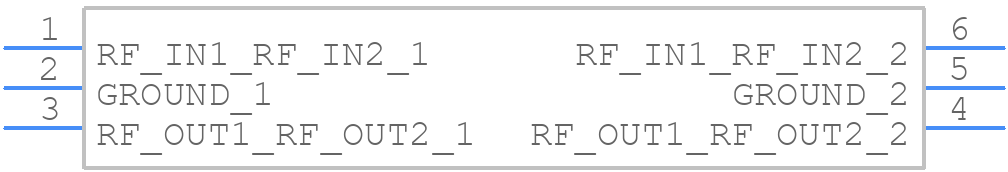

DLFCN-290+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DLFCN-290+ - Mini-Circuits PCB footprint - Other - Other - DLFCN-290+-1
click to zoom
3D Models
DLFCN-290+ - Mini-Circuits - 3D model - Other - DLFCN-290+-1
click to zoom

DLFCN-290+ Details

  • Manufacturer Part Number:

    DLFCN-290+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.59

  • Average Input Power:

    2 W

  • Center or Cutoff Frequency (fo/fc):

    290 MHz

  • Filter Type:

    CERAMIC LPF

  • Height:

    0.89 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3.5 dB

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • VSWR:

    1.22

  • Width:

    1.6 mm

DLFCN-290+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a ground plane on the bottom layer, and a microstrip layout on the top layer with a 50-ohm impedance. Keep the filter away from other components and avoid vias near the filter.
  • Use a pi-network or a T-network to match the filter's 50-ohm impedance to your system's impedance. You can also use a Smith chart to design the matching network.
  • The DLFCN-290+ can handle up to 10W of continuous power, but it's recommended to derate the power handling based on the operating frequency and temperature.
  • The filter is rated for operation up to 85°C, but the performance may degrade at higher temperatures. Consult with Mini-Circuits for custom high-temperature designs.
  • Use a compatible connector or solder the filter directly to the PCB. Ensure the PCB material and layout are compatible with the filter's frequency range and power handling.
