DLFL-0147-12D5 - SCHURTER

Description: 2 Line Common Mode Choke Through Hole 12A DCR 38mOhm

Download DLFL-0147-12D5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLFL-0147-12D5 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

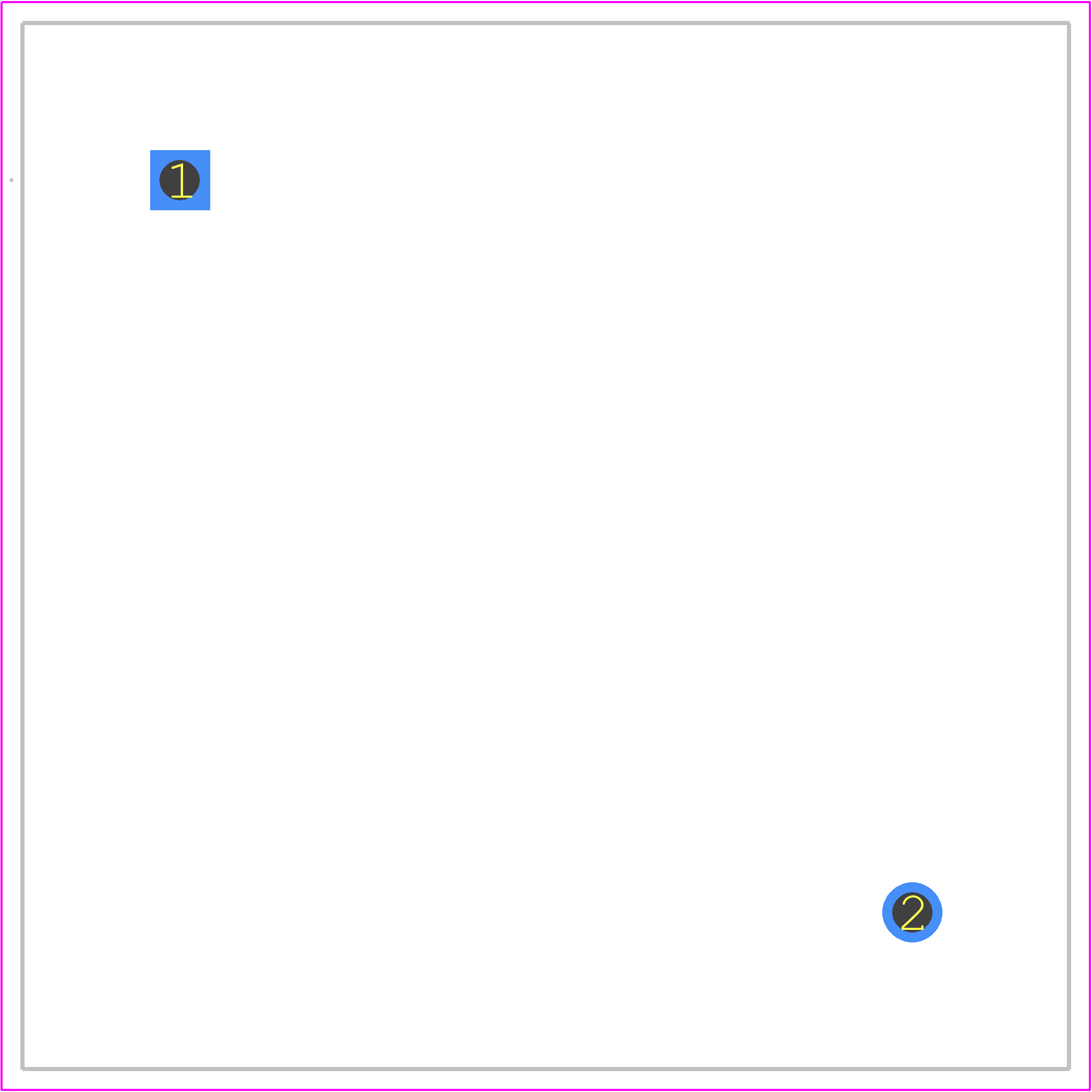

DLFL-0147-12D5 - SCHURTER PCB footprint - Other - Other - DLFL-0147-12D5-5
click to zoom
3D Models
DLFL-0147-12D5 - SCHURTER - 3D model - Other - DLFL-0147-12D5-5
click to zoom

DLFL-0147-12D5 Details

  • Manufacturer Part Number:

    DLFL-0147-12D5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    11 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    POWDERED IRON

  • DC Resistance:

    0.038 Ω

  • Inductance-Nom (L):

    500 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Height:

    45.8 mm

  • Package Length:

    50 mm

  • Package Style:

    Radial

  • Package Width:

    50 mm

  • Rated Current-Max:

    12 A

  • Self Resonance Frequency:

    1.16 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE
