DLH-31-0003 footprint, schematic symbol and 3D model by SCHURTER

Symbol

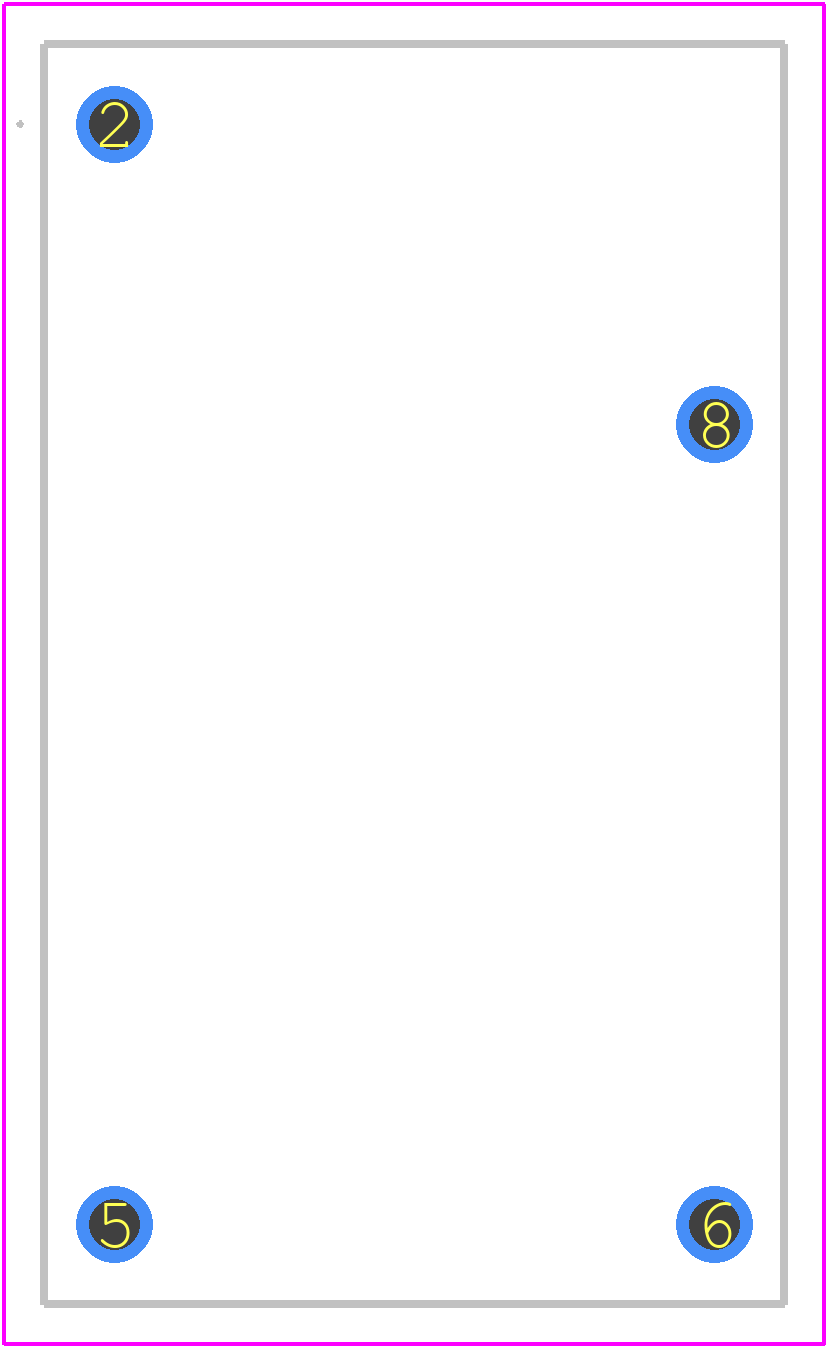

PCB Footprints

3D Models

DLH-31-0003 Details

The recommended torque for the screws of the DLH-31-0003 is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
Yes, the DLH-31-0003 is designed to withstand high-vibration environments, but it's recommended to follow the Schurter guidelines for mounting and screw torque to ensure reliable operation.
The DLH-31-0003 is rated for operation up to 85°C, but it's recommended to derate the current rating for temperatures above 70°C. Consult the Schurter application notes for more information.
The DLH-31-0003 has a protection rating of IP40, which means it's protected against solid objects larger than 1mm, but not against water or moisture. For humid or wet environments, consider using a different Schurter product with a higher IP rating.
The recommended wire size for the DLH-31-0003 is 0.5 mm² to 2.5 mm² (AWG20 to AWG14). Consult the Schurter application notes for more information on wire sizing and termination.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the DLH-31-0003 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DLH-3, or try a keyword search, such as Fixed Inductors
