DLH-31-0008 footprint, schematic symbol and 3D model by SCHURTER

Symbol

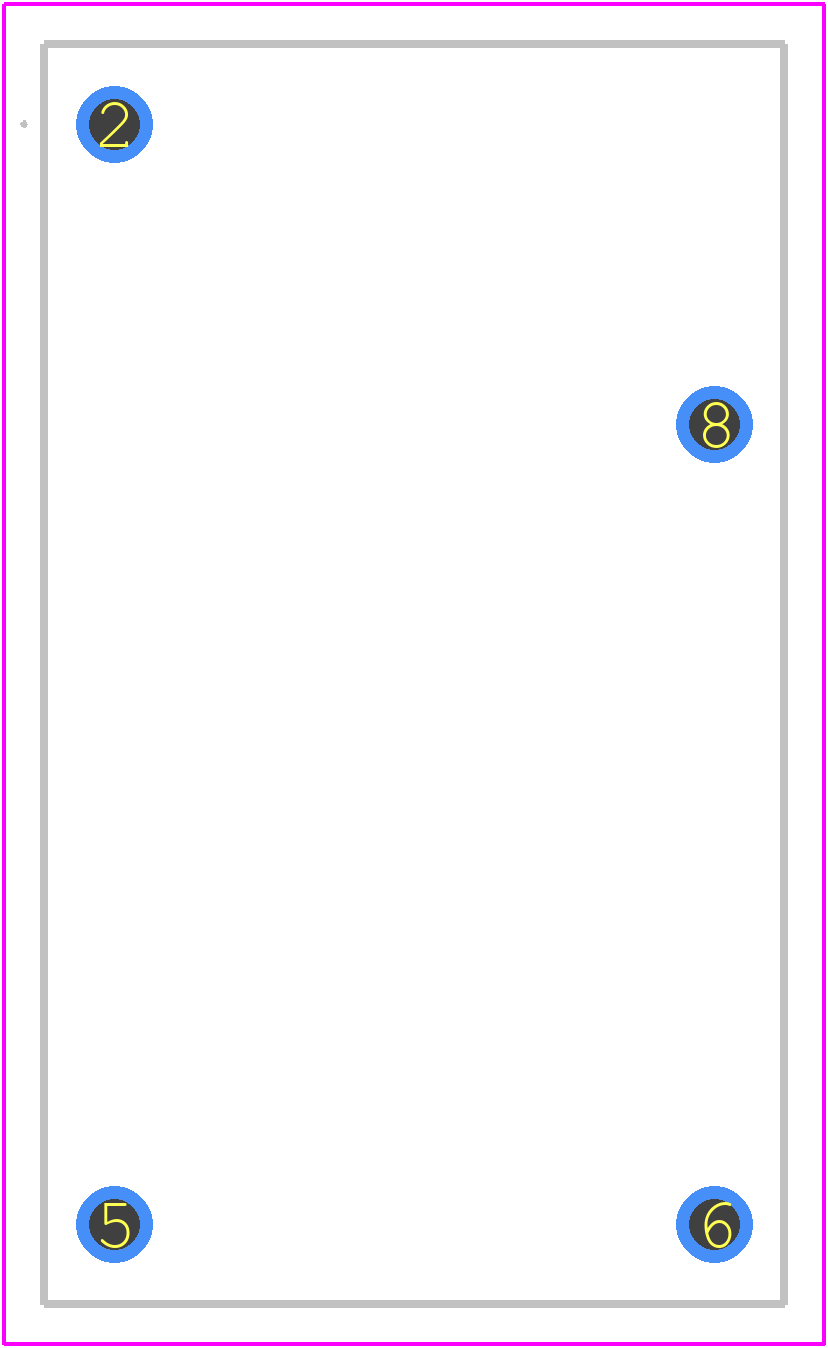

PCB Footprints

3D Models

DLH-31-0008 Details

The recommended torque for the screw terminals of DLH-31-0008 is 0.5 Nm to 1.5 Nm, as specified by Schurter.
No, the DLH-31-0008 is specifically designed for use with 5x20mm fuses. Using other types of fuses may not ensure proper fit, safety, or performance.
While the DLH-31-0008 is a robust component, it is not specifically designed for high-vibration applications. For such applications, Schurter recommends using their vibration-resistant fuse holders, such as the DMH series.
No, the DLH-31-0008 is a panel-mount fuse holder and is not designed for PCB mounting. For PCB-mount fuse holders, consider Schurter's PPT series.
The DLH-31-0008 meets the requirements of IEC 60127-1 and IEC 60127-2, but it is not specifically certified for use in medical devices. For medical device applications, consider Schurter's medical-grade fuse holders, such as the MGA series.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the DLH-31-0008 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DLH-3, or try a keyword search, such as Fixed Inductors
