DLM0NSB120HY2D - Murata Electronics

Description: DLM0NSB_Y2D Series EMI Suppression Filter 12Ω at 100MHz 160mA 5V

Download DLM0NSB120HY2D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

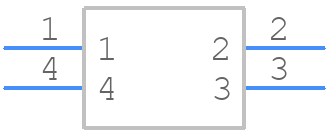

DLM0NSB120HY2D - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
DLM0NSB120HY2D - Murata Electronics PCB footprint - Other - Other - DLM0N L=0.85 W=0.65 T=0.45
click to zoom
3D Models
DLM0NSB120HY2D - Murata Electronics - 3D model - Other - DLM0N L=0.85 W=0.65 T=0.45
click to zoom

DLM0NSB120HY2D Details

  • Manufacturer Part Number:

    DLM0NSB120HY2D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 03025, SMD, 4 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • DC Resistance-Max:

    1.5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.45 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    0.85 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    12 OHM Ω

  • Packing Method:

    TR, PAPER, 7 INCH

  • Rated Current:

    0.16 A

  • Rated Voltage:

    5 V

  • Width:

    0.65 mm

DLM0NSB120HY2D Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DLM0NSB120HY2D can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and footprint design.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines provided in the datasheet, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowable voltage derating for the DLM0NSB120HY2D can be found in the datasheet, but as a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation.
  • Yes, the DLM0NSB120HY2D is suitable for high-frequency applications, but it's essential to consider the component's self-resonant frequency and ensure that the operating frequency is below the self-resonant frequency to avoid unwanted resonances.
  • To prevent damage during the soldering process, it's recommended to follow the recommended soldering profile provided in the datasheet, and use a soldering iron with a temperature-controlled tip to avoid overheating the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLM0NSB120HY2D Overview

Use the download button to access the DLM0NSB120HY2D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLM0N, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
