DLM5-260RW4B - ITT CANNON

Description: Conn Rectangular SKT 260 POS Wire Wrap ST Thru-Hole - Bulk

Download DLM5-260RW4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLM5-260RW4B - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

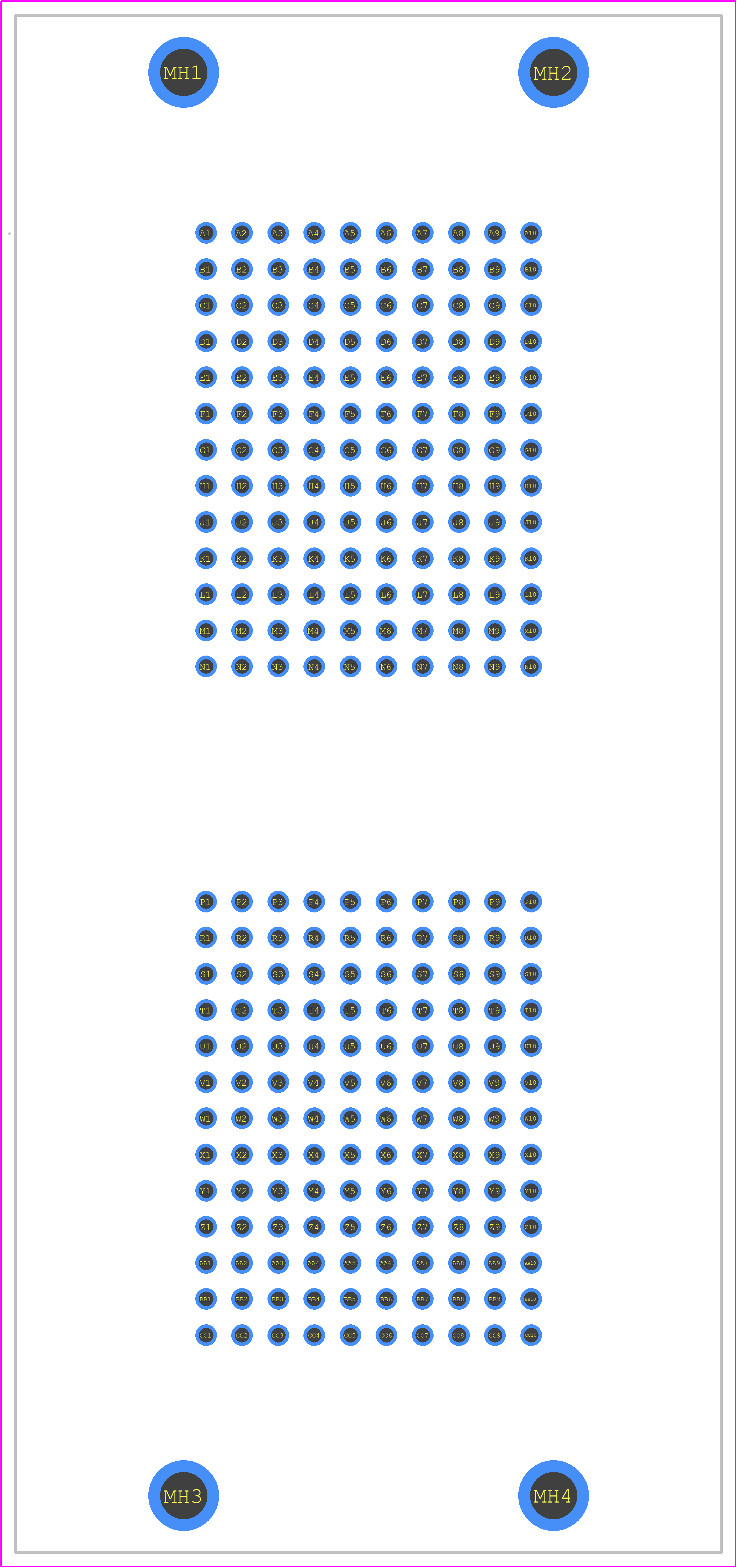

DLM5-260RW4B - ITT CANNON PCB footprint - Other - Other - DLM5-260RW4B-2
click to zoom
3D Models
DLM5-260RW4B - ITT CANNON - 3D model - Other - DLM5-260RW4B-2
click to zoom

DLM5-260RW4B Details

  • Manufacturer Part Number:

    DLM5-260RW4B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    7

  • Additional Feature:

    EMI/RFI SHIELDED, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    GOLD (50)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    METAL

  • Termination Type:

    WIRE WRAP

  • Total Number of Contacts:

    260

  • UL Flammability Code:

    94V-0

DLM5-260RW4B Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 20-25 in-lbs (2.3-2.8 Nm) for the backshell.
  • Yes, the DLM5-260RW4B is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the DLM5-260RW4B is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance of 95% RH at 40°C.
  • The DLM5-260RW4B connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the DLM5-260RW4B connector is RoHS and REACH compliant, meeting the requirements of EU Directive 2011/65/EU and Regulation (EC) No 1907/2006.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLM5-260RW4B Overview

Use the download button to access the DLM5-260RW4B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLM5-, or try a keyword search, such as Multiway Rack and Panel Connectors
