DLM5-260RW6B - ITT CANNON

Description: 260 Connector Receptacle, Hermaphroditic Contacts

Download DLM5-260RW6B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLM5-260RW6B - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

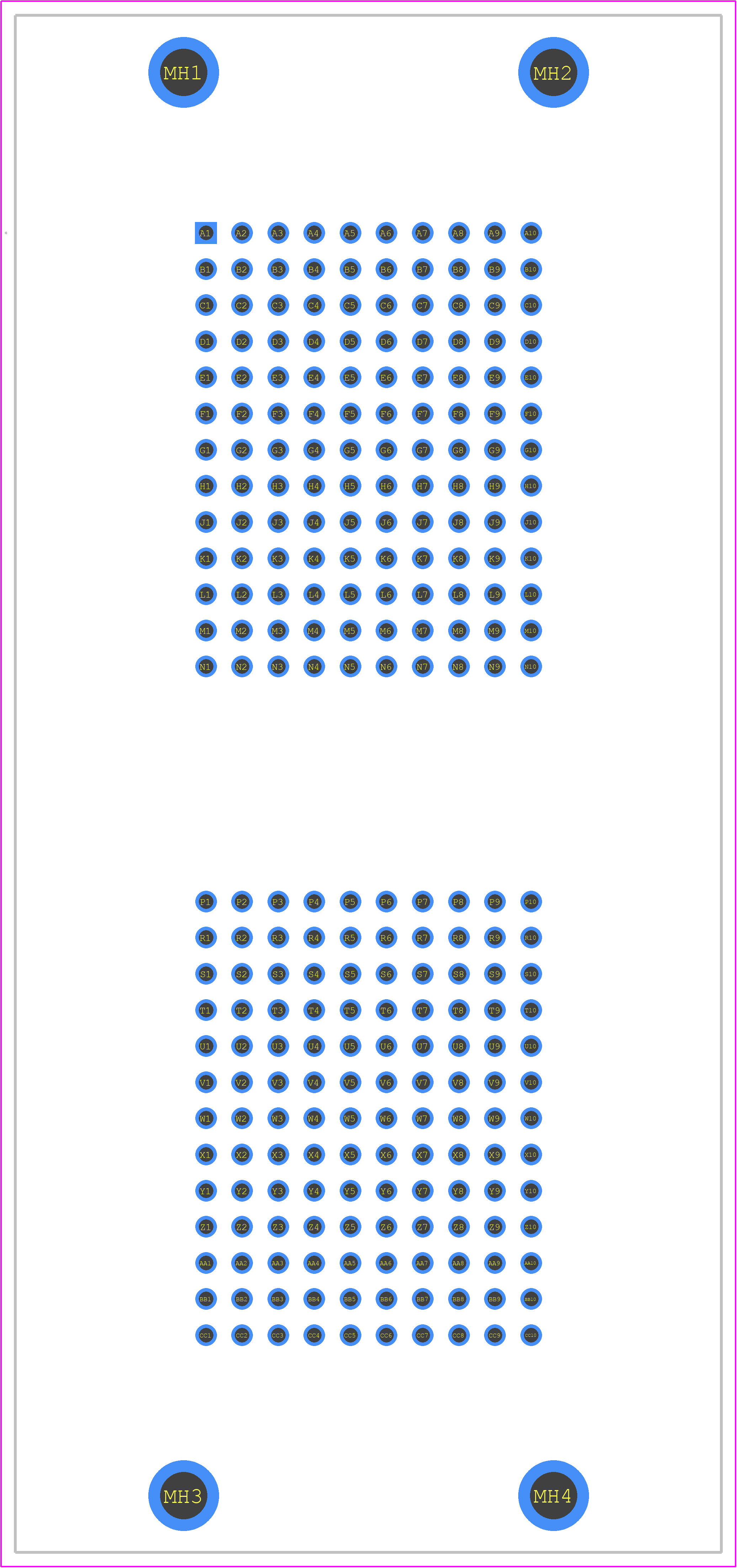

DLM5-260RW6B - ITT CANNON PCB footprint - Other - Other - DLM5-260RW6B-2
click to zoom
3D Models
DLM5-260RW6B - ITT CANNON - 3D model - Other - DLM5-260RW6B-2
click to zoom

DLM5-260RW6B Details

  • Manufacturer Part Number:

    DLM5-260RW6B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    7

  • Additional Feature:

    EMI/RFI SHIELDED, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    METAL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    260

  • UL Flammability Code:

    94V-0

DLM5-260RW6B Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the DLM5-260RW6B connector.
  • Yes, the DLM5-260RW6B connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, defense, and industrial systems.
  • Yes, the DLM5-260RW6B connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • Yes, the DLM5-260RW6B connector is compatible with other connectors in the DLM series, allowing for flexibility in design and application.
  • The maximum operating frequency of the DLM5-260RW6B connector is 6 GHz.
