DLP0NSN900HL2L - Murata Electronics

Description: Murata DLP0NS Series ±20% Multilayer SMD Inductor, 03025 Case, 100mA dc 3Ω Rdc

Download DLP0NSN900HL2L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

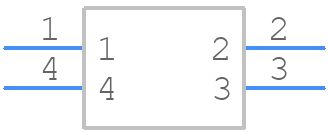

Symbol
DLP0NSN900HL2L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
DLP0NSN900HL2L - Murata Electronics PCB footprint - Other - Other - DLP0NS L=0.85 W=0.65 T=0.45
click to zoom
3D Models
DLP0NSN900HL2L - Murata Electronics - 3D model - Other - DLP0NS L=0.85 W=0.65 T=0.45
click to zoom

DLP0NSN900HL2L Details

  • Manufacturer Part Number:

    DLP0NSN900HL2L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    EIA STD PACKAGE SIZE 03025, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • DC Resistance-Max:

    3.75 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.45 mm

  • Insulation Resistance-Min:

    100 MΩ

  • JESD-609 Code:

    e3

  • Length:

    0.85 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    90 OHM Ω

  • Packing Method:

    TAPE

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Tin (Sn)

  • Width:

    0.65 mm

DLP0NSN900HL2L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DLP0NSN900HL2L can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and design.
  • The DLP0NSN900HL2L has a thermal resistance of 10°C/W. Ensure proper thermal management by providing adequate heat dissipation paths, using thermal vias, and following recommended PCB design guidelines.
  • The DLP0NSN900HL2L has an operating temperature range of -40°C to +125°C. Ensure that your design operates within this range to ensure component reliability.
  • To ensure reliability in high-vibration environments, follow Murata's recommended mounting and soldering guidelines, and consider using additional mechanical support or potting compounds to secure the component.
  • Store the DLP0NSN900HL2L in a dry, cool place, away from direct sunlight and moisture. Handle the component by the edges to prevent damage, and avoid bending or flexing the leads.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLP0NSN900HL2L Overview

Use the download button to access the DLP0NSN900HL2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLP0N, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
