DLPA006-7 - Diodes Incorporated

Description: Bridge Rectifier Three Phase Standard 85 V Surface Mount SOT-363

Download DLPA006-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

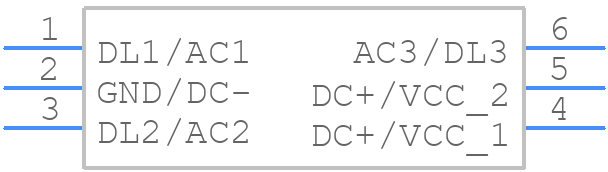

DLPA006-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DLPA006-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363
click to zoom
3D Models
DLPA006-7 - Diodes Incorporated - 3D model - SOT23 (6-Pin) - SOT-363
click to zoom

DLPA006-7 Details

  • Manufacturer Part Number:

    DLPA006-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, ULTRA SMALL, PLASTIC PACKAGE-6

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    85 V

  • Configuration:

    BRIDGE, 6 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.9 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    4 A

  • Number of Elements:

    6

  • Number of Phases:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.16 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.2 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    85 V

  • Reverse Recovery Time-Max:

    3 µs

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DLPA006-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the DLPA006-7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 3.3V) and decouple it with a 10uF capacitor. The EN pin should be tied to VCC or a digital signal for enable/disable control. The VIN pin should be connected to a stable input voltage source.
  • The maximum current rating for the DLPA006-7 is 2A. However, it's recommended to derate the current to 1.5A for optimal performance and to prevent overheating.
  • To protect the DLPA006-7 from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • For thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal pad should be connected to a solid ground plane to improve heat dissipation.
