DLW21SH121HQ2L - Murata Electronics

Description: 2 Line Common Mode Choke Surface Mount 120 Ohms @ 100 MHz 280mA DCR 416mOhm

Download DLW21SH121HQ2L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

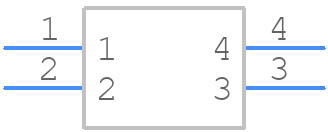

Symbol
DLW21SH121HQ2L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
DLW21SH121HQ2L - Murata Electronics PCB footprint - Other - Other - DLW21SH121HQ2L-1
click to zoom
3D Models
DLW21SH121HQ2L - Murata Electronics - 3D model - Other - DLW21SH121HQ2L-1
click to zoom

DLW21SH121HQ2L Details

  • Manufacturer Part Number:

    DLW21SH121HQ2L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0805, SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    8

  • DC Resistance-Max:

    0.416 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.2 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    120 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    0.28 A

  • Rated Voltage:

    20 V

  • Screening Level:

    AEC-Q200

  • Width:

    1.2 mm

DLW21SH121HQ2L Frequently Asked Questions (FAQs)

  • The recommended land pattern for DLW21SH121HQ2L can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for pad layout, spacing, and dimensions to ensure reliable soldering and component performance.
  • To handle the component's sensitivity to moisture, it's essential to follow proper storage and handling procedures, such as storing the components in a dry environment, using desiccant packaging, and avoiding exposure to high humidity or moisture during assembly and testing.
  • The maximum reflow temperature for DLW21SH121HQ2L is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component or affect its reliability.
  • While the DLW21SH121HQ2L is designed to be robust, it's essential to evaluate its performance in a high-vibration environment through rigorous testing and simulation. Murata provides guidelines for vibration testing, and it's recommended to consult with their application engineers for specific guidance.
  • To ensure the component's EMC, it's crucial to follow proper PCB design and layout guidelines, such as keeping the component away from noise sources, using shielding, and implementing proper grounding and decoupling techniques. Additionally, Murata provides EMC-related information in their application notes and datasheets.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLW21SH121HQ2L Overview

Use the download button to access the DLW21SH121HQ2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLW21, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
