Part Image

DLW21SH670HQ2L - Murata Electronics

Description: 2 Line Common Mode Choke Surface Mount 67 Ohms @ 100 MHz 320mA DCR 312mOhm

Download DLW21SH670HQ2L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

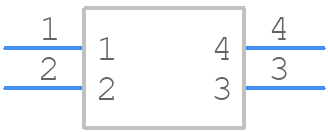

Symbol
DLW21SH670HQ2L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
DLW21SH670HQ2L - Murata Electronics PCB footprint - Other - Other - DLW21SH670HQ2L-1
click to zoom
3D Models
DLW21SH670HQ2L - Murata Electronics - 3D model - Other - DLW21SH670HQ2L-1
click to zoom

DLW21SH670HQ2L Details

  • Manufacturer Part Number:

    DLW21SH670HQ2L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0805, SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • DC Resistance-Max:

    0.312 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.2 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    67 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    0.32 A

  • Rated Voltage:

    20 V

  • Screening Level:

    AEC-Q200

  • Width:

    1.2 mm

DLW21SH670HQ2L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DLW21SH670HQ2L can be found in the Murata Land Pattern Recommendation document, which provides detailed information on pad layout, size, and spacing for optimal performance and reliability.
  • The DLW21SH670HQ2L is designed to minimize high-frequency noise and EMI due to its shielded construction, which reduces radiation and improves electromagnetic compatibility. Additionally, its ferrite core material helps to absorb high-frequency noise.
  • The maximum operating temperature range for the DLW21SH670HQ2L is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the inductor's performance and reliability may degrade at extreme temperatures.
  • While the DLW21SH670HQ2L is rated for a maximum current of 2.1A, it's essential to consider the inductor's power handling capability, core losses, and thermal resistance when designing for high-current applications. It's recommended to consult with Murata's application engineers or perform thorough simulations to ensure the inductor meets the specific application requirements.
  • Yes, the DLW21SH670HQ2L is compatible with lead-free soldering processes, as it meets the requirements of the RoHS (Restriction of Hazardous Substances) directive. However, it's essential to follow the recommended soldering conditions and profiles to ensure reliable assembly and minimize the risk of damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLW21SH670HQ2L Overview

Use the download button to access the DLW21SH670HQ2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLW21, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
