DLW44SM851SK2L - Murata Electronics

Description: DLW44SM_K2L Series EMI Suppression Filter 850Ω at 100MHz 1.9A 60V

Download DLW44SM851SK2L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLW44SM851SK2L - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

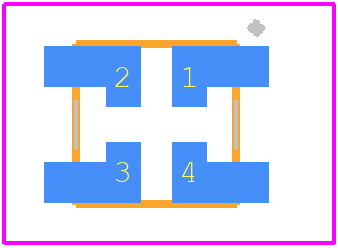

DLW44SM851SK2L - Murata Electronics PCB footprint - Other - Other - DLW44 L=4.0 W=4.0 T=1.5
click to zoom
3D Models
DLW44SM851SK2L - Murata Electronics - 3D model - Other - DLW44 L=4.0 W=4.0 T=1.5
click to zoom

DLW44SM851SK2L Details

  • Manufacturer Part Number:

    DLW44SM851SK2L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 1515, SMD, 4 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • DC Resistance-Max:

    0.056 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.4 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    850 OHM Ω

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current:

    1.9 A

  • Rated Voltage:

    60 V

  • Width:

    4 mm

DLW44SM851SK2L Frequently Asked Questions (FAQs)

  • The recommended land pattern can be found in the Murata Land Pattern document, which provides detailed guidelines for PCB design and layout.
  • Murata provides thermal resistance values in the datasheet. Ensure proper thermal vias, copper pours, and thermal pads are designed to dissipate heat effectively.
  • Follow the soldering conditions specified in the Murata Soldering Guidelines document, which outlines temperature profiles and time recommendations for reflow soldering.
  • While the component is designed to withstand some vibration, it's essential to evaluate the specific vibration profile and ensure the component is properly secured and mounted to prevent damage or dislodging.
  • Murata provides reliability data in the datasheet. Ensure the component is operated within the specified temperature range, and consider derating the component's specifications for high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLW44SM851SK2L Overview

Use the download button to access the DLW44SM851SK2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLW44, or try a keyword search, such as Data Line Filters
