DM1AA-SF-PEJ(82) - Hirose

Description: DM1 R/A SMT SD memory card, push/push DM1 R/A SMT SD memory card, push/push

Download DM1AA-SF-PEJ(82) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

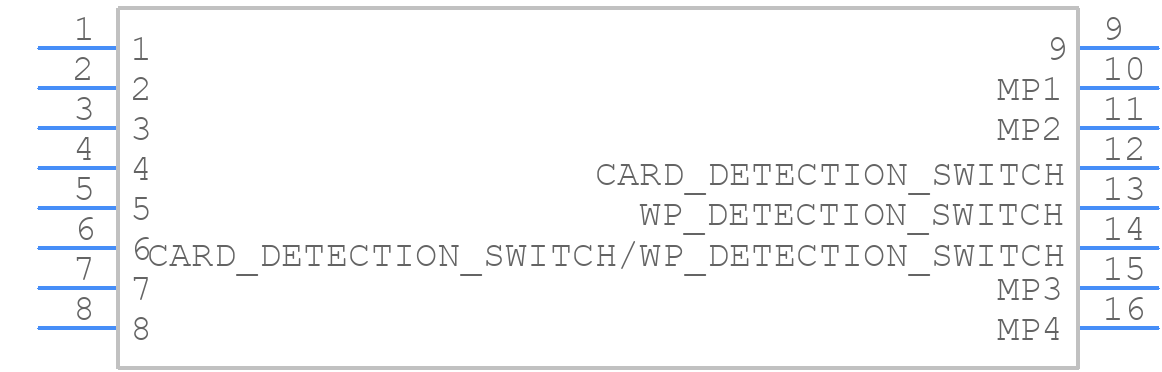

Symbol
DM1AA-SF-PEJ(82) - Hirose - PCB symbol
click to zoom

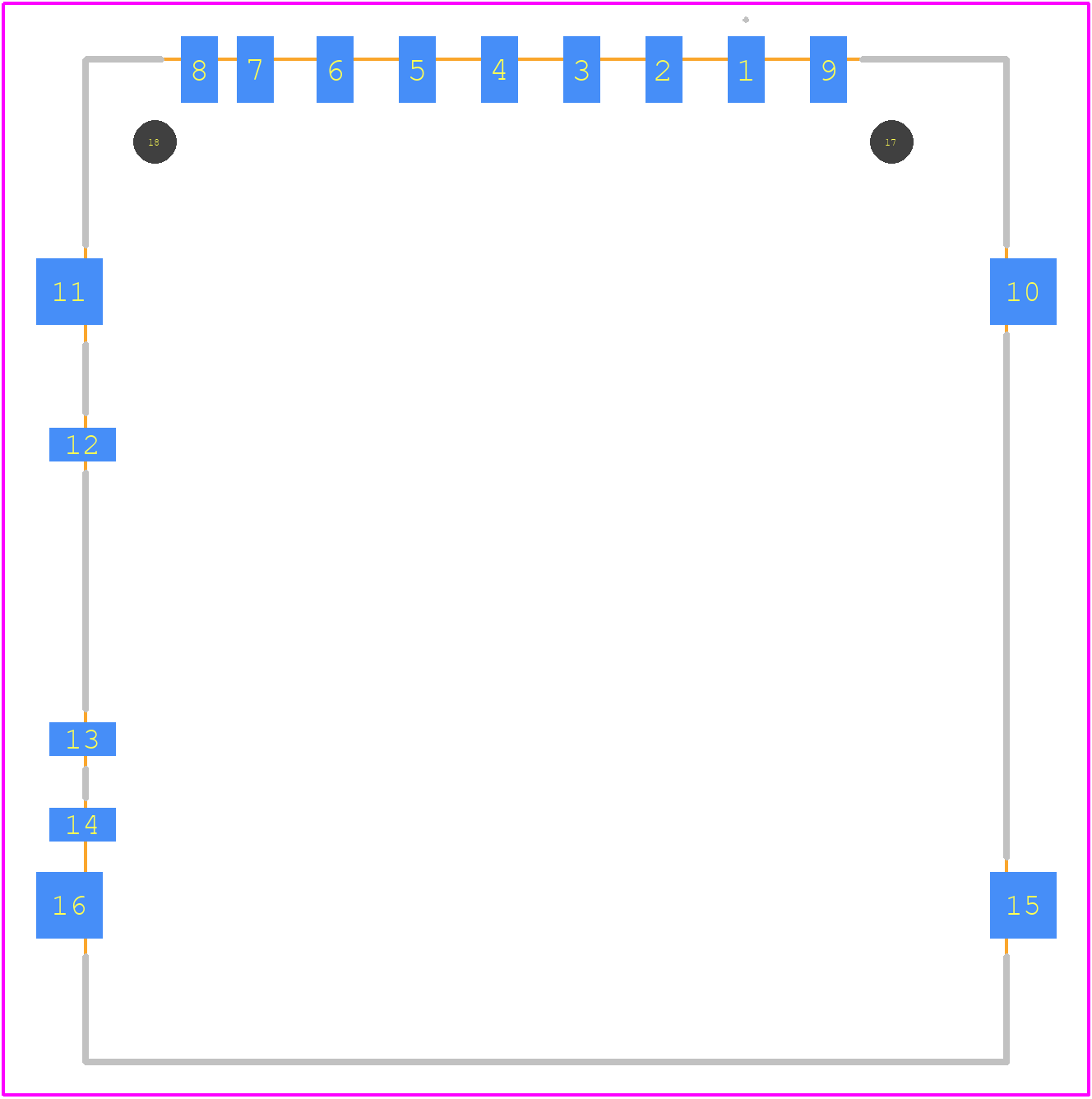

PCB Footprints
DM1AA-SF-PEJ(82) - Hirose PCB footprint - Other - Other - DM1AA-SF-PEJ(82)-3
click to zoom
3D Models
DM1AA-SF-PEJ(82) - Hirose - 3D model - Other - DM1AA-SF-PEJ(82)-3
click to zoom

DM1AA-SF-PEJ(82) Details

  • Manufacturer Part Number:

    DM1AA-SF-PEJ(82)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    6.35

  • Connector Type:

    PCB CONNECTOR

DM1AA-SF-PEJ(82) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DM1AA-SF-PEJ(82) connector is 500 cycles.
  • Yes, the DM1AA-SF-PEJ(82) connector is designed to withstand high-vibration environments and is suitable for applications that require high reliability in harsh conditions.
  • The operating temperature range for the DM1AA-SF-PEJ(82) connector is -40°C to 105°C.
  • Yes, the DM1AA-SF-PEJ(82) connector is compatible with lead-free soldering and is RoHS compliant.
  • The recommended torque for the DM1AA-SF-PEJ(82) connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM1AA-SF-PEJ(82) Overview

Use the download button to access the DM1AA-SF-PEJ(82) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM1AA, or try a keyword search, such as Headers and Edge Type Connectors
