DM3BT-DSF-PEJS - Hirose

Description: Memory Card Connectors MICRO SD CD CONN REV SMT PUSHPUSH

Download DM3BT-DSF-PEJS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

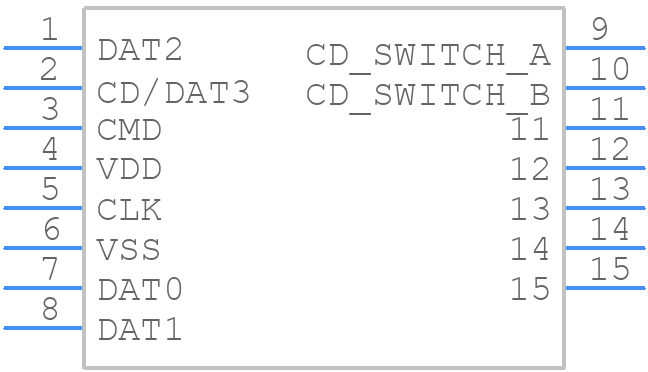

DM3BT-DSF-PEJS - Hirose - PCB symbol
click to zoom
PCB Footprints
DM3BT-DSF-PEJS - Hirose PCB footprint - Other - Other - DM3BT-DSF-PEJS
click to zoom
3D Models
DM3BT-DSF-PEJS - Hirose - 3D model - Other - DM3BT-DSF-PEJS
click to zoom

DM3BT-DSF-PEJS Details

  • Manufacturer Part Number:

    DM3BT-DSF-PEJS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    PCB CONNECTOR

DM3BT-DSF-PEJS Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DM3BT-DSF-PEJS connector is 500 cycles.
  • Yes, the DM3BT-DSF-PEJS connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range for the DM3BT-DSF-PEJS connector is -40°C to 105°C.
  • Yes, the DM3BT-DSF-PEJS connector is compatible with lead-free soldering processes.
  • The recommended torque for the DM3BT-DSF-PEJS connector is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM3BT-DSF-PEJS Overview

Use the download button to access the DM3BT-DSF-PEJS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM3BT, or try a keyword search, such as Headers and Edge Type Connectors
