- Part Number DM3D-SF
- Manufacturer Hirose
- Pin Count 14
- Part Category Connector
- Package Category Other
- Footprint Name Other - DM3D-SF-4
- Released Date Sep 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DM3D-SF Details
-
Manufacturer Part Number:
DM3D-SF
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
Connector Type:
PCB CONNECTOR
DM3D-SF Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector.
-
Yes, DM3D-SF is designed to withstand vibrations up to 10 G (10-2000 Hz) and is suitable for use in high-vibration environments.
-
The maximum operating temperature range for DM3D-SF is -40°C to 105°C. However, the storage temperature range is -40°C to 125°C.
-
Yes, DM3D-SF is compatible with lead-free soldering. The recommended soldering temperature is 260°C (peak temperature) for 10 seconds or less.
-
The minimum bend radius for the cable assembly is 10 mm. Bending the cable beyond this radius may cause damage to the internal wires.
Trust Checks
Expert Contribution
System Verified
Community Approved
DM3D-SF Overview

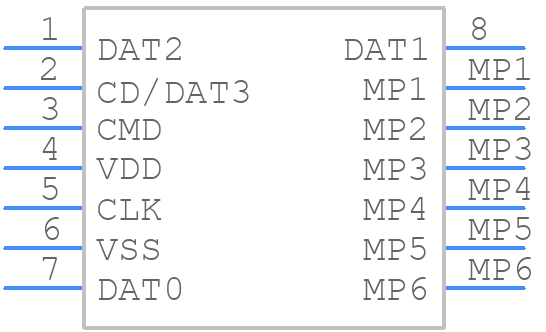

Use the download button to access the DM3D-SF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM3D-,
or try a keyword search, such as Headers and Edge Type Connectors
