DM9161AEP - DAVICOM

Description: IC: Ethernet controller; 10Base-T/100Base-TX; LQFP48; 3.3VDC Fully comply with IEEE 802.3 / IEEE 802.3u 10Base-T/ 100Base-TX, ANSI X3T12 TP-PMD 1995 standard „ Support MDI/MDI-X auto crossover function (Auto-MDI) „ Support Auto-Negotiation function, compliant with IEEE 802.3u „ Fully integrated Physical layer transceiver On-chip filtering with direct interface to magnetic transformer „ Selectable repeater or node mode „ Selectable MII or RMII (Reduced MII) mode for 100Base-TX and 10Base-TX. Selec

Download DM9161AEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

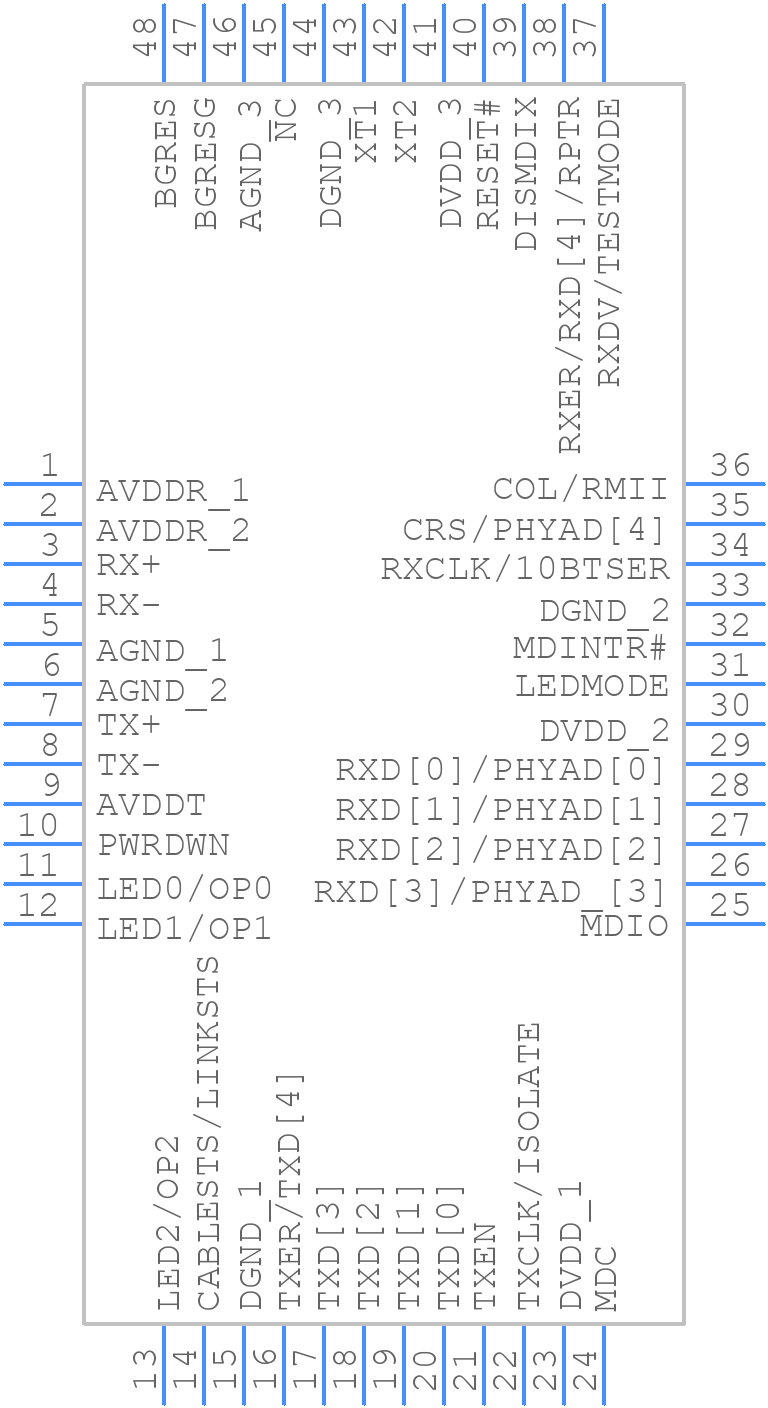

DM9161AEP - DAVICOM - PCB symbol
click to zoom
PCB Footprints
DM9161AEP - DAVICOM PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48
click to zoom
3D Models
DM9161AEP - DAVICOM - 3D model - Quad Flat Packages - LQFP48
click to zoom

DM9161AEP Details

  • Manufacturer Part Number:

    DM9161AEP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Davicom Semiconductor Inc

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

DM9161AEP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a high-quality decoupling capacitor (e.g., 10uF) close to the VCC pin, and ensure the power supply is stable and noise-free. Add a 10nF capacitor between VCC and GND for additional filtering.
  • The DM9161AEP supports cable lengths up to 100 meters (328 feet) for Fast Ethernet and 200 meters (656 feet) for Gigabit Ethernet, assuming a high-quality Category 5e or higher cable.
  • The DM9161AEP defaults to half-duplex mode. To enable full-duplex mode, set the FDEN (Full-Duplex Enable) pin high. For half-duplex mode, set FDEN low or leave it floating.
  • The recommended clock frequency is 25 MHz, but the DM9161AEP can operate with a clock frequency range of 20 MHz to 40 MHz.
