DM9161BIEP - DAVICOM

Description: DAVICOM - DM9161BIEP - IC, TRX, 10/100MBPS, ENET PHY,48LQFP

Download DM9161BIEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

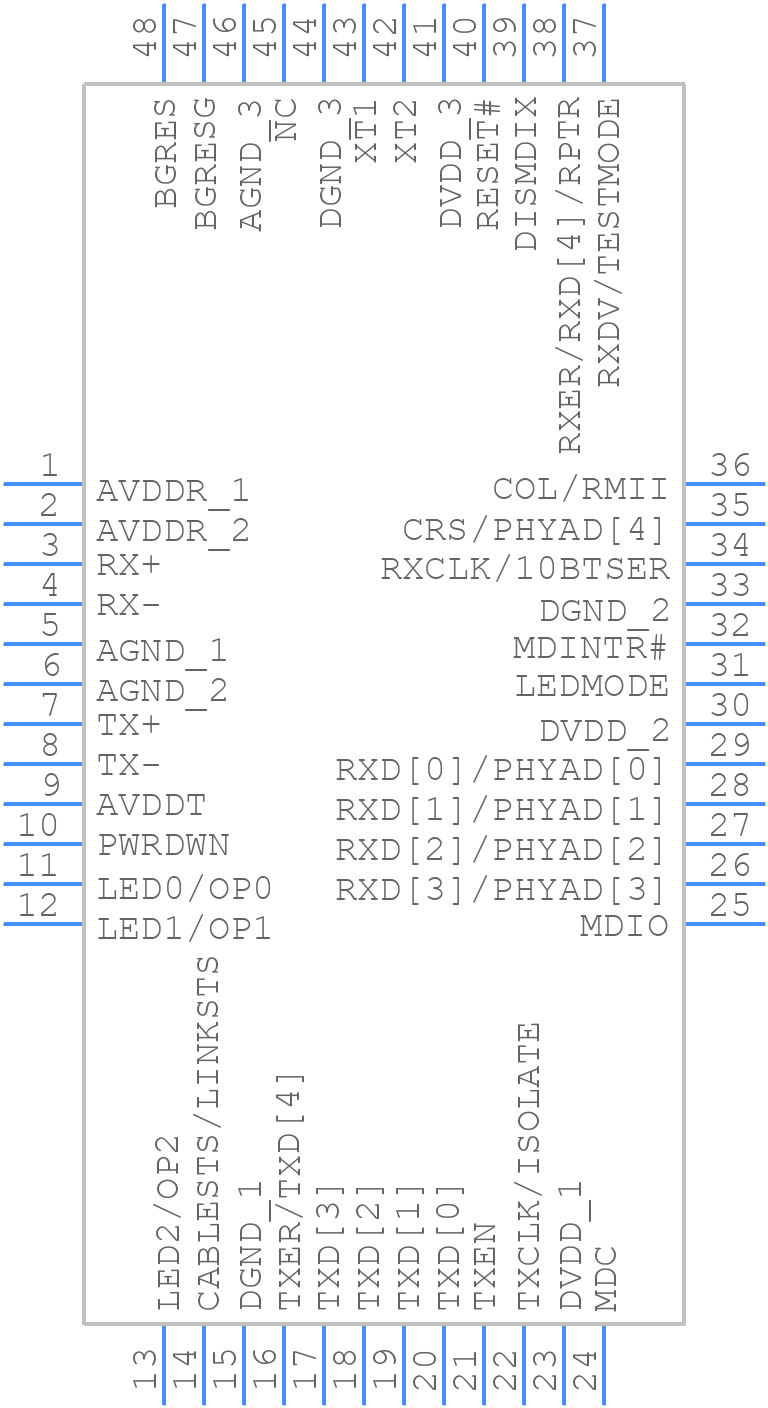

DM9161BIEP - DAVICOM - PCB symbol
click to zoom
PCB Footprints
DM9161BIEP - DAVICOM PCB footprint - Quad Flat Packages - Quad Flat Packages - DM9161BIEP-1
click to zoom
3D Models
DM9161BIEP - DAVICOM - 3D model - Quad Flat Packages - DM9161BIEP-1
click to zoom

DM9161BIEP Details

  • Manufacturer Part Number:

    DM9161BIEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Davicom Semiconductor Inc

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

DM9161BIEP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DM9161BIEP is -40°C to 85°C.
  • The DM9161BIEP can be configured for half-duplex or full-duplex operation through the control registers. For half-duplex operation, set the TXEN and RXEN pins accordingly. For full-duplex operation, set the TXEN pin high and the RXEN pin low.
  • The maximum cable length supported by the DM9161BIEP is 100 meters, assuming a Category 5e or higher cable.
  • To troubleshoot issues with the DM9161BIEP, check the power supply voltage, clock frequency, and signal integrity. Also, verify that the device is properly configured and that the firmware is up-to-date.
  • Yes, the DM9161BIEP is compatible with industrial Ethernet protocols such as EtherNet/IP, PROFINET, and Modbus TCP.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM9161BIEP Overview

Use the download button to access the DM9161BIEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM916, or try a keyword search, such as Network Interfaces
