DM9162IEP - DAVICOM

Description: 10/100Mbps Fast Ethernet Physical Layer Single Chip Transceiver LQFP-48(7x7)

Download DM9162IEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

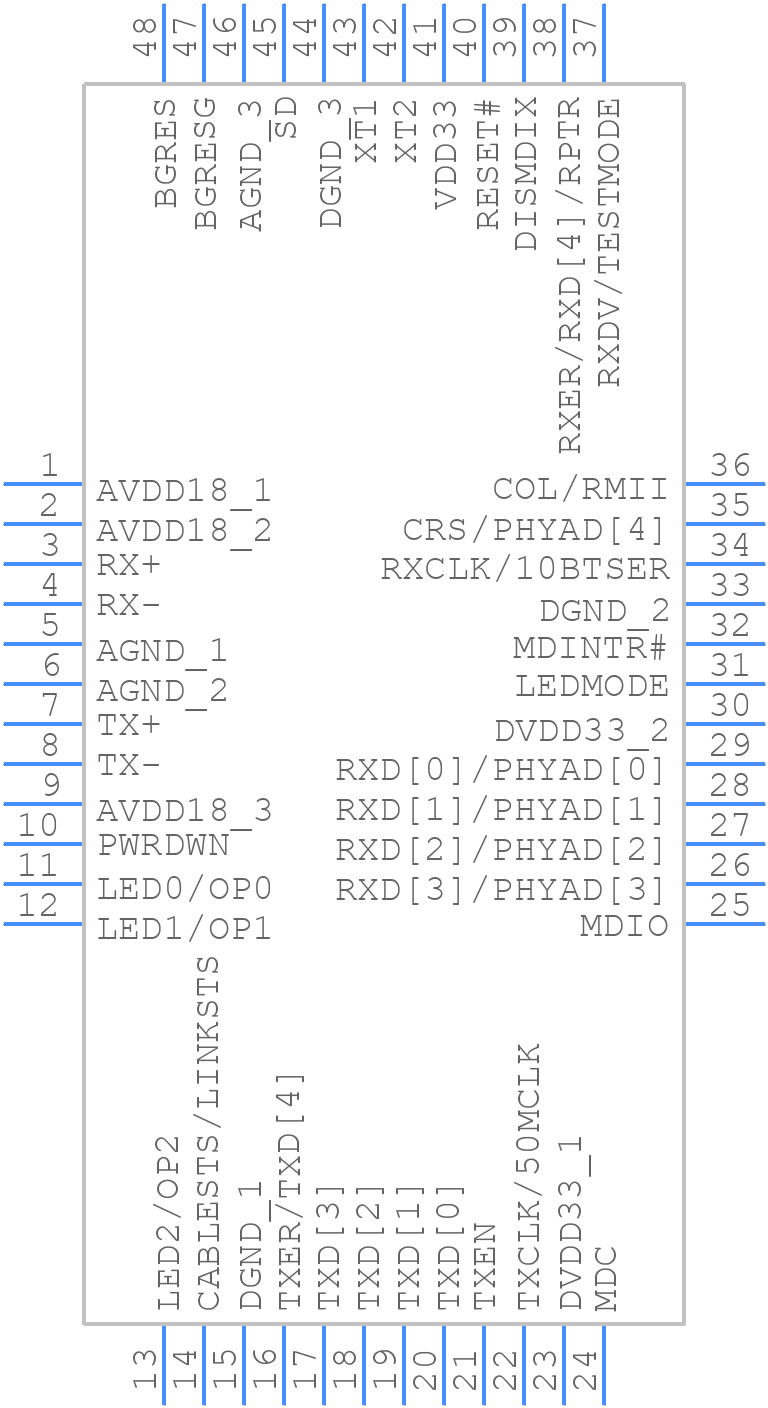

DM9162IEP - DAVICOM - PCB symbol
click to zoom
PCB Footprints
DM9162IEP - DAVICOM PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 Pins LQFP
click to zoom
3D Models
DM9162IEP - DAVICOM - 3D model - Quad Flat Packages - 48 Pins LQFP
click to zoom

DM9162IEP Details

  • Manufacturer Part Number:

    DM9162IEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Davicom Semiconductor Inc

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

DM9162IEP Frequently Asked Questions (FAQs)

  • The typical power consumption of the DM9162IEP is around 350mW (typical) and 500mW (max) at 25°C, depending on the operating frequency and mode.
  • Yes, the DM9162IEP is compatible with other PHY devices that support the MII (Media Independent Interface) or RMII (Reduced Media Independent Interface) standards.
  • The DM9162IEP can operate in the temperature range of -40°C to 85°C (industrial grade) and -20°C to 70°C (commercial grade).
  • The DM9162IEP can be configured for half-duplex or full-duplex operation through the MII management interface using the MDC (Management Data Clock) and MDIO (Management Data Input/Output) pins.
  • The latency of the DM9162IEP is around 2-3 clock cycles for transmit and receive operations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM9162IEP Overview

Use the download button to access the DM9162IEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM916, or try a keyword search, such as Network Interfaces
