Description: 100% Unclamped Inductive Switch (UIS) Test in Production
Low Input Capacitance
Low On-Resistance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable,
and manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/p
The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the device, using a minimum of 2oz copper thickness, and ensuring a clearance of at least 0.5mm around the device. Additionally, using thermal vias and a heat sink can further improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 150°C) and ensure proper heat sinking and thermal management. Additionally, consider using a thermally conductive material for the PCB and ensuring good airflow around the device.
The DMC10H172SSD-13 has an ESD rating of Human Body Model (HBM) ≥ 2kV and Machine Model (MM) ≥ 200V. To prevent ESD damage, handle the device with an anti-static wrist strap or mat, and ensure that the PCB and components are properly grounded during assembly and testing.
While the DMC10H172SSD-13 is a high-quality device, it's essential to check the specific requirements of your high-reliability or automotive application. Diodes Incorporated provides additional documentation and support for these applications, including AEC-Q101 qualification and PPAP (Production Part Approval Process) support.
The recommended soldering and reflow conditions for the DMC10H172SSD-13 involve using a peak reflow temperature of 260°C (max), a soldering temperature range of 220°C to 240°C, and a soldering time of 3 to 5 seconds (max). Ensure that the PCB and components are properly cleaned and prepared before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC10H172SSD-13 Overview

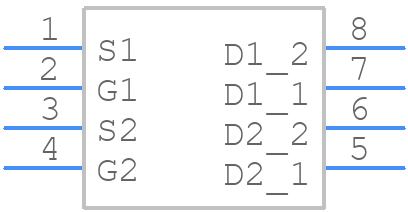

Use the download button to access the DMC10H172SSD-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC10,
or try a keyword search, such as Power Field-Effect Transistors
