A good PCB layout for the DMC3021LSDQ-13 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and parasitic inductance.
To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
The DMC3021LSDQ-13 can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
Yes, the DMC3021LSDQ-13 is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
To troubleshoot issues with the DMC3021LSDQ-13, start by checking the input voltage, output voltage, and current consumption. Verify that the device is operated within its recommended specifications and that the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact Diodes Incorporated's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC3021LSDQ-13 Overview

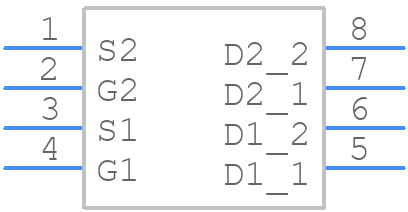

Use the download button to access the DMC3021LSDQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC30,
or try a keyword search, such as Power Field-Effect Transistors
