A good PCB layout for the DMC3061SVTQ-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider using a heat sink or thermal interface material to reduce thermal resistance.
The DMC3061SVTQ-7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the DMC3061SVTQ-7 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions and ensure that the device is used within its specified ratings.
The recommended soldering conditions for the DMC3061SVTQ-7 are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering iron temperature of 350°C. Ensure that the device is not exposed to excessive thermal stress during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC3061SVTQ-7 Overview

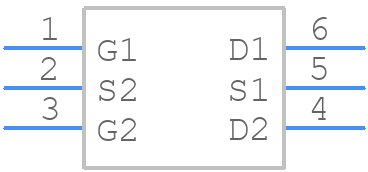

Use the download button to access the DMC3061SVTQ-7 schematic symbol, PCB footprint, and 3D model.
