A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer. This helps to dissipate heat efficiently.
To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. Use a voltage regulator or a voltage divider network to set the desired voltage, and add decoupling capacitors to filter out noise and ripple.
To prevent ESD damage, handle the device in an ESD-safe environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or leads. Use anti-static packaging and follow proper storage and handling procedures.
The DMG2305UX-13 is rated for operation up to 150°C. However, it's essential to consider the device's thermal characteristics, PCB design, and cooling mechanisms to ensure reliable operation in high-temperature environments.
To troubleshoot issues, use a multimeter to measure voltage and current, and an oscilloscope to analyze waveforms. Check the PCB layout, component values, and soldering quality. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMG2305UX-13 Overview

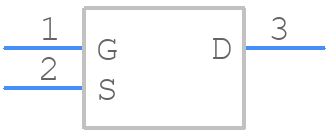

Use the download button to access the DMG2305UX-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMG23,
or try a keyword search, such as Power Field-Effect Transistors
