A good PCB layout for the DMG4413LSS-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. This helps to reduce thermal resistance and ensures reliable operation.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, consider using a voltage regulator or a voltage-controlled current source to maintain a stable bias voltage.
Operating the DMG4413LSS-13 beyond the recommended temperature range (–40°C to 150°C) may lead to reduced performance, decreased reliability, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range for optimal performance and longevity.
To prevent electrostatic discharge (ESD) damage, handle the DMG4413LSS-13 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device's pins or exposed internal components to prevent ESD damage.
Store the DMG4413LSS-13 in its original packaging or an anti-static bag, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or leads. Avoid bending or flexing the leads, and ensure the device is properly seated in its socket or PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMG4413LSS-13 Overview

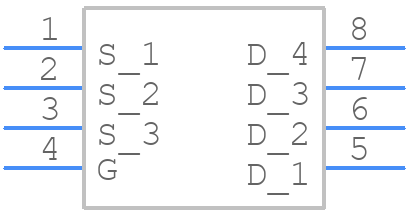

Use the download button to access the DMG4413LSS-13 schematic symbol, PCB footprint, and 3D model.
