2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
60 V
Drain Current-Max (ID):
10.6 A
Drain-source On Resistance-Max:
0.022 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PDSO-N12
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
12
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
2.7 W
Pulsed Drain Current-Max (IDM):
14.8 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMHT6016LFJ-13 Frequently Asked Questions (FAQs)
The recommended PCB footprint for DMHT6016LFJ-13 is a 16-pin QFN package with a 3x3mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design.
To ensure reliable operation of DMHT6016LFJ-13 in high-temperature environments, follow proper thermal design and layout guidelines, including providing adequate heat dissipation, using thermal vias, and minimizing thermal resistance. Also, ensure that the device is operated within its recommended operating temperature range of -40°C to 125°C.
The DMHT6016LFJ-13 has built-in ESD protection and latch-up prevention measures, including internal ESD diodes and a latch-up protection circuit. However, it is still recommended to follow proper ESD handling and storage procedures to prevent damage to the device.
Yes, the DMHT6016LFJ-13 is suitable for use in high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified automotive process. However, it is recommended to consult with Diodes Incorporated for specific application requirements and to ensure compliance with relevant industry standards.
The DMHT6016LFJ-13 should be stored in a dry, cool place, away from direct sunlight and moisture. It should be handled using anti-static wrist straps, mats, and bags to prevent ESD damage. The device should not be exposed to temperatures above 260°C or below -40°C during storage or handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMHT6016LFJ-13 Overview

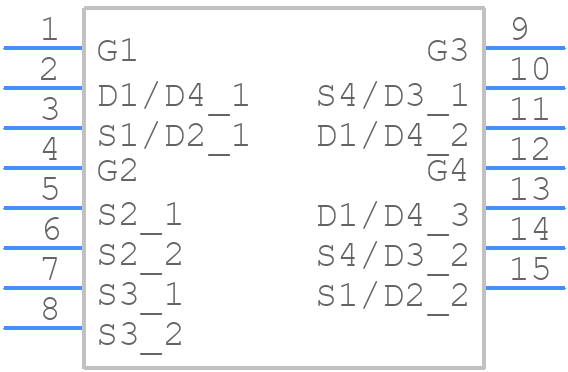

Use the download button to access the DMHT6016LFJ-13 schematic symbol, PCB footprint, and 3D model.
