Adam Technologies recommends a PCB layout with a solid ground plane, minimal thermal resistance, and a heat sink attached to the tab of the device. A thermal pad on the bottom of the device can also be used to improve heat dissipation.
Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during assembly, and ensure the device is properly seated on the PCB.
The maximum allowable voltage stress is 1.5 times the rated voltage. To protect the device from overvoltage, use a voltage regulator or a transient voltage suppressor (TVS) diode in the circuit design.
Use a multimeter to measure voltage and current at the device pins, and check for any signs of physical damage or overheating. Consult the datasheet and application notes for troubleshooting guidelines, and contact Adam Technologies' technical support if necessary.
Yes, the device can be sensitive to electromagnetic interference (EMI). Use proper shielding, grounding, and decoupling techniques in the PCB design to minimize EMI effects. Consult the datasheet and relevant industry standards for EMI/EMC guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DML-10-A-V-T-A Overview

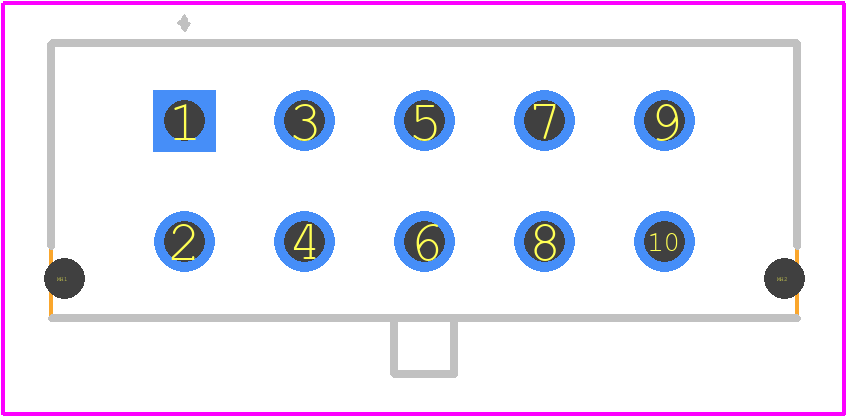

Use the download button to access the DML-10-A-V-T-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DML-1,
or try a keyword search, such as Power Connectors
