DML-16-A-H-T-A - Adam Tech

Description: Connector Header Through Hole, Right Angle 16 position 0.118" (3.00mm), 250V , -25C to +85C

Download DML-16-A-H-T-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DML-16-A-H-T-A - Adam Tech - PCB symbol
click to zoom
PCB Footprints

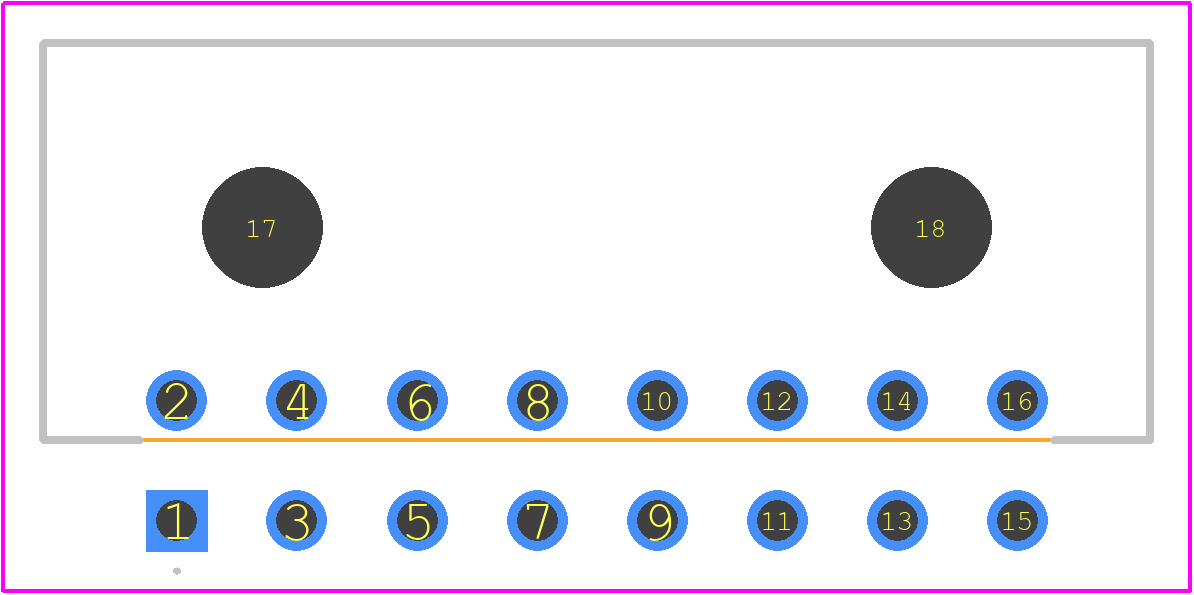

DML-16-A-H-T-A - Adam Tech PCB footprint - Other - Other - DML-16-A-H-T-A-2
click to zoom
3D Models
DML-16-A-H-T-A - Adam Tech - 3D model - Other - DML-16-A-H-T-A-2
click to zoom

DML-16-A-H-T-A Details

  • Manufacturer Part Number:

    DML-16-A-H-T-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.489 inch

  • Body Length:

    1.088 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    SN

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

DML-16-A-H-T-A Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DML-16-A-H-T-A is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, the DML-16-A-H-T-A is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The typical lead time for delivery of the DML-16-A-H-T-A is 4-6 weeks, depending on the quantity and availability.
  • Yes, the DML-16-A-H-T-A is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • Yes, Adam Technologies Inc offers customization options for the DML-16-A-H-T-A, including custom pinouts, wire lengths, and connector types. Contact their sales team for more information.
