Diodes Incorporated recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB. Additionally, keeping the component away from other heat sources and using a heat sink can further improve thermal performance.
To ensure proper soldering, Diodes Incorporated recommends using a soldering iron with a temperature range of 250°C to 260°C. The soldering time should be limited to 3 seconds or less, and the device should be handled by the package body, not the leads. A soldering flux with a low acidity level is also recommended.
While the datasheet specifies a maximum voltage rating of 100V, it's essential to note that the device can withstand voltage transients up to 150V for a short duration (less than 100ms). However, operating the device at or near the maximum voltage rating for an extended period may affect its reliability and lifespan.
To protect the DML1008LDS-7 from ESD damage, Diodes Incorporated recommends using an ESD wrist strap or mat during handling and assembly. The device should be stored in an anti-static bag or container when not in use. Additionally, ESD-sensitive devices should be handled in an ESD-controlled environment.
Diodes Incorporated recommends storing the DML1008LDS-7 in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. The device should be stored in its original packaging or an anti-static bag to prevent damage from moisture and ESD.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DML1008LDS-7 Overview

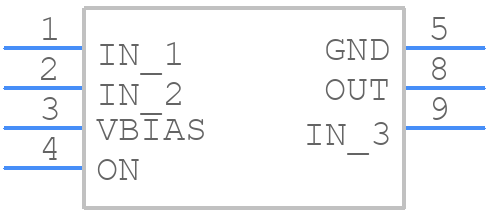

Use the download button to access the DML1008LDS-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DML10,
or try a keyword search, such as Peripheral Drivers
