A good PCB layout for the DML1010FDK-7 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place the device close to the power source. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure the DML1010FDK-7 operates within the SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal management techniques, such as heat sinks or thermal pads, to keep the junction temperature below 150°C. Also, ensure the input voltage does not exceed 12V and the output current does not exceed 1A.
A ceramic capacitor with a value between 1uF to 10uF is recommended for the input. The capacitor should be placed as close to the device as possible and should have a voltage rating of at least 16V. X5R or X7R dielectric types are suitable for this application.
The DML1010FDK-7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. If operation above 125°C is required, consider using a heat sink or thermal management techniques to keep the junction temperature below 150°C.
To troubleshoot issues with the DML1010FDK-7, check the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes or oscillations. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DML1010FDK-7 Overview

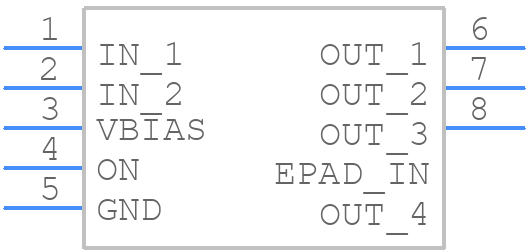

Use the download button to access the DML1010FDK-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DML10,
or try a keyword search, such as Peripheral Drivers
