DML3009LDC-7 - Diodes Incorporated

Description: Power Switch/Driver 1:1 N-Channel 20A V-DFN3030-12 (Type B)

Download DML3009LDC-7 Model

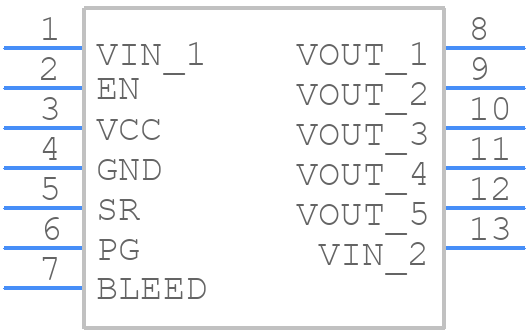

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DML3009LDC-7 - Diodes Incorporated PCB footprint - Other - Other - DML3009LDC-7
click to zoom
3D Models
DML3009LDC-7 - Diodes Incorporated  - 3D model - Other - DML3009LDC-7
click to zoom

DML3009LDC-7 Details

  • Manufacturer Part Number:

    DML3009LDC-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2018-01-19

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

DML3009LDC-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.
  • The device requires a bias voltage of 2.5V to 5.5V on the VIN pin, and a logic input voltage of 1.8V to 5.5V on the EN pin. Ensure the input voltage is within the recommended range for optimal performance.
  • The maximum current rating for the DML3009LDC-7 is 3A. Exceeding this rating may cause damage to the device.
  • Use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
  • The recommended operating temperature range for the DML3009LDC-7 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DML3009LDC-7 Overview

Use the download button to access the DML3009LDC-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DML30, or try a keyword search, such as Peripheral Drivers
