The recommended PCB footprint for the DMN2028UFDH-7 is a standard SOT23 package with a 1.3mm x 1.3mm body size and a 0.5mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet, including the input voltage range, output current, and operating temperature. Additionally, ensure that the input voltage is stable and within the recommended range.
The DMN2028UFDH-7 has a thermal resistance of 240°C/W. To ensure reliable operation, follow the recommended thermal design guidelines, including providing adequate heat sinking, using thermal vias, and minimizing thermal resistance.
Yes, the DMN2028UFDH-7 is qualified for automotive and high-reliability applications. It meets the AEC-Q101 qualification standard and is designed to operate in harsh environments.
To troubleshoot issues with the DMN2028UFDH-7, follow a systematic approach, checking the input voltage, output current, and operating temperature. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMN2028UFDH-7 Overview

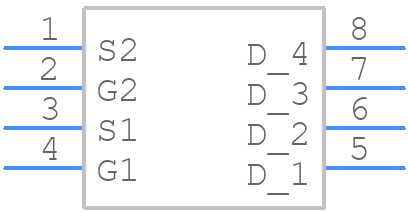

Use the download button to access the DMN2028UFDH-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN20,
or try a keyword search, such as Power Field-Effect Transistors
