DMN2028USS-13 - Diodes Incorporated

Description: Diodes Inc DMN2028USS-13 N-channel MOSFET Transistor, 9.8 A, 20 V, 8-Pin SOIC

Download DMN2028USS-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

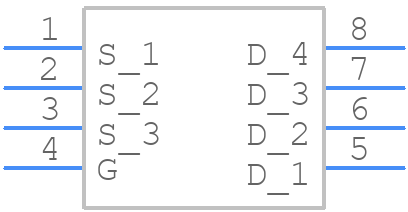

Symbol
DMN2028USS-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DMN2028USS-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
DMN2028USS-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8
click to zoom

DMN2028USS-13 Details

  • Manufacturer Part Number:

    DMN2028USS-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    7.3 A

  • Drain-source On Resistance-Max:

    0.02 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    158 pF

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.56 W

  • Pulsed Drain Current-Max (IDM):

    45 A

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN2028USS-13 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DMN2028USS-13 is a standard SOT23 package with a 1.3mm x 1.3mm body size. A minimum pad size of 0.6mm x 0.6mm is recommended for reliable soldering.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the maximum junction temperature (Tj) by 1°C for every 1W of power dissipation above 25°C. Additionally, ensure good thermal design and heat sinking to minimize thermal resistance.
  • The maximum safe operating area (SOA) for the DMN2028USS-13 is defined by the maximum voltage and current ratings. Ensure that the device operates within the recommended voltage range (30V) and current range (2A) to prevent damage or degradation.
  • To prevent electrostatic discharge (ESD) damage, handle the DMN2028USS-13 with ESD-protective equipment and follow proper handling procedures. Ensure that the device is stored in an ESD-protected environment and that all personnel handling the device are grounded.
  • The recommended soldering conditions for the DMN2028USS-13 are: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Ensure that the soldering process is within these parameters to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMN2028USS-13 Overview

Use the download button to access the DMN2028USS-13 schematic symbol, PCB footprint, and 3D model.
