Diodes Incorporated recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
To ensure proper biasing, follow the recommended operating conditions in the datasheet, and consider using a voltage regulator or a resistive divider network to set the gate-source voltage (Vgs) within the specified range.
Exceeding the maximum Tj rating can lead to reduced lifespan, increased thermal resistance, and potentially catastrophic failure. Ensure proper thermal management and design margins to prevent overheating.
While the DMN3009LFV-7 is suitable for high-frequency switching, it's essential to consider the device's parasitic capacitances, inductances, and switching losses. Ensure proper layout, decoupling, and snubber design to minimize ringing and EMI.
Implement ESD protection measures such as using ESD-resistant devices, adding ESD protection diodes or networks, and following proper handling and storage procedures to prevent damage during manufacturing and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMN3009LFV-7 Overview

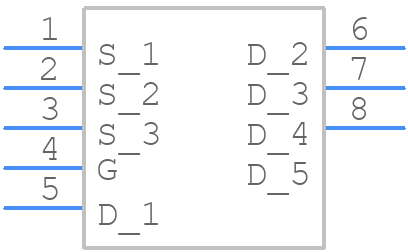

Use the download button to access the DMN3009LFV-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN30,
or try a keyword search, such as Power Field-Effect Transistors
