DMNH6021SK3-13 - Diodes Incorporated

Description: N-Channel 60 V 50A (Tc) 2.1W (Ta) Surface Mount TO-252-3

Download DMNH6021SK3-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DMNH6021SK3-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

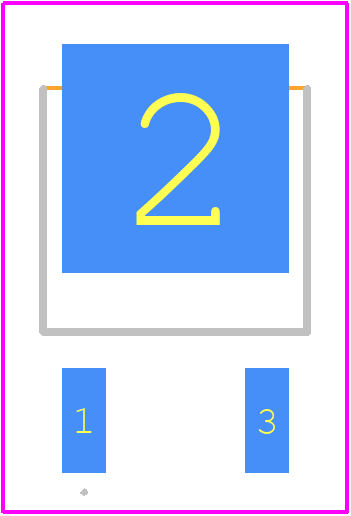

DMNH6021SK3-13 - Diodes Incorporated PCB footprint - Other - Other - DMNH6021SK3-13-4
click to zoom

DMNH6021SK3-13 Details

  • Manufacturer Part Number:

    DMNH6021SK3-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Additional Feature:

    HIGH RELIABILITY

  • Avalanche Energy Rating (Eas):

    64 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    50 A

  • Drain-source On Resistance-Max:

    0.028 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMNH6021SK3-13 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The DMNH6021SK3-13 requires a bias voltage of 2.5V to 5.5V on the VCC pin, and the input voltage on the VIN pin should be within the specified range. Ensure the input voltage is stable and noise-free to prevent oscillations.
  • The maximum allowed current on the output pins is 1A per pin, with a total current limit of 2A for the entire device. Exceeding this limit may cause damage to the device.
  • The DMNH6021SK3-13 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-safe environment.
  • The DMNH6021SK3-13 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within the specified temperature range for optimal performance.
