A good PCB layout for the DMNH6021SPD-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the PCB has sufficient copper area to dissipate heat. A 2-ounce copper layer is recommended. Additionally, keep the component placement and routing symmetrical to minimize thermal gradients.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation. It's also essential to ensure good airflow around the device and to avoid thermal hotspots.
The DMNH6021SPD-13 has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Avoid touching the device's pins or exposed pads, and use a soldering iron with an anti-static tip.
The DMNH6021SPD-13 is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper qualification and testing. Diodes Incorporated provides a range of automotive-grade devices, so it's essential to verify the device's suitability for your specific application. Consult with Diodes Incorporated or a qualified engineer to ensure the device meets the required standards and regulations.
To troubleshoot common issues like overheating or malfunction, start by verifying the device's operating conditions, including voltage, current, and temperature. Check for proper PCB layout, component placement, and thermal management. Use a thermal camera or thermometer to identify hotspots, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMNH6021SPD-13 Overview

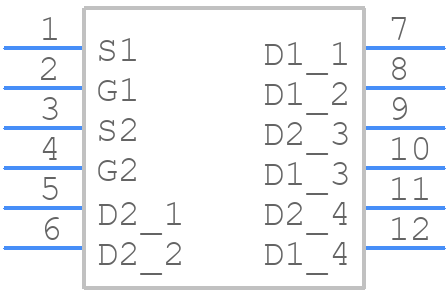

Use the download button to access the DMNH6021SPD-13 schematic symbol, PCB footprint, and 3D model.
