The recommended PCB layout for the DMP1007UCB9-7 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a low-ESR capacitor for the input bypass capacitor.
To ensure stability, make sure to follow the recommended PCB layout, use a suitable input capacitor, and ensure that the output capacitor is properly sized. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
The DMP1007UCB9-7 can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating.
Yes, the DMP1007UCB9-7 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to follow the recommended operating conditions and ensure proper design and testing to meet the specific application requirements.
To troubleshoot issues with the DMP1007UCB9-7, start by verifying the input voltage, output voltage, and current. Check the PCB layout and ensure that it follows the recommended layout. Also, verify that the input and output capacitors are properly sized and of good quality. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP1007UCB9-7 Overview

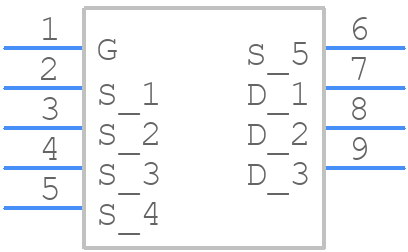

Use the download button to access the DMP1007UCB9-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP10,
or try a keyword search, such as Power Field-Effect Transistors
