DMP10H400SE-13 - Diodes Incorporated

Description: Trans MOSFET P-CH 100V 2.3A 4-Pin(3+Tab) SOT-223 T/R

Download DMP10H400SE-13 Model

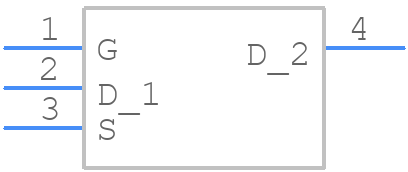

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP10H400SE-13 - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - SOT-223--
click to zoom
3D Models
DMP10H400SE-13 - Diodes Incorporated  - 3D model - SOT223 (3-Pin) - SOT-223--
click to zoom

DMP10H400SE-13 Details

  • Manufacturer Part Number:

    DMP10H400SE-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-223, 4 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5.6

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    2.3 A

  • Drain-source On Resistance-Max:

    0.3 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    28 pF

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    13.7 W

  • Pulsed Drain Current-Max (IDM):

    10 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMP10H400SE-13 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DMP10H400SE-13 is a standard SOT23 package with a 1.3mm x 1.3mm body size. A minimum pad size of 0.8mm x 0.8mm is recommended for reliable soldering.
  • To ensure proper biasing, connect the gate to a voltage source through a 1kΩ to 10kΩ resistor, and the source to ground through a 100Ω to 1kΩ resistor. This will provide a stable voltage reference and minimize oscillations.
  • The maximum safe operating area (SOA) for the DMP10H400SE-13 is defined by the voltage and current ratings. Do not exceed 400V drain-source voltage, 10A continuous drain current, and 20A peak drain current to ensure reliable operation.
  • To protect the DMP10H400SE-13 from ESD, handle the device with an anti-static wrist strap or mat, and ensure the PCB has ESD protection diodes or resistors on the input and output pins.
  • The thermal resistance (RθJA) of the DMP10H400SE-13 is approximately 125°C/W. This value is critical for thermal design and heat sink selection to ensure reliable operation.
