DMP2130LDM-7 - Diodes Incorporated

Description: MOSFET P-Channel

Download DMP2130LDM-7 Model

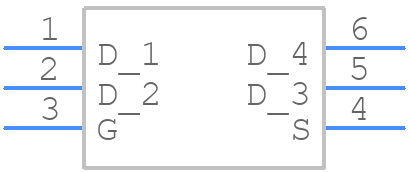

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP2130LDM-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DMP2130LDM-7
click to zoom
3D Models
DMP2130LDM-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - DMP2130LDM-7
click to zoom

DMP2130LDM-7 Details

  • Manufacturer Part Number:

    DMP2130LDM-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC PACKAGE-6

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    3.4 A

  • Drain-source On Resistance-Max:

    0.08 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

DMP2130LDM-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat. The copper area should be at least 1 inch x 1 inch in size and should be connected to a ground plane to minimize thermal resistance.
  • The device requires a bias voltage of 2.5V to 5.5V on the gate pin, and the source pin should be connected to a low-impedance power supply. A 10uF capacitor is recommended between the gate and source pins to filter out noise.
  • The maximum current rating for the DMP2130LDM-7 is 3.5A. However, it's recommended to derate the current to 2.5A for continuous operation to ensure reliability and minimize thermal stress.
  • A TVS diode or a zener diode can be used to protect the device from overvoltage. Additionally, ESD protection can be achieved by using a series resistor and a capacitor between the gate and source pins.
  • The DMP2130LDM-7 is designed to operate up to 1MHz. However, it can be used at higher frequencies with proper PCB layout and decoupling. It's recommended to consult with a Diodes Incorporated application engineer for specific guidance.
