The recommended PCB layout for the DMP2200UFCL-7 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing a 10uF ceramic capacitor between the VIN and GND pins to filter out noise.
To ensure the DMP2200UFCL-7 operates within the safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current to prevent overheating, overvoltage, and overcurrent conditions.
The recommended input capacitor value for the DMP2200UFCL-7 is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) ceramic capacitor, such as X5R or X7R, to filter out input noise and ripple.
The DMP2200UFCL-7 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's specifications for high-temperature applications.
To troubleshoot issues with the DMP2200UFCL-7, check the input voltage, output load, and PCB layout for any anomalies. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP2200UFCL-7 Overview

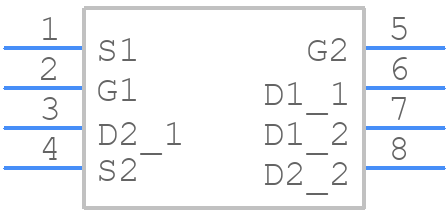

Use the download button to access the DMP2200UFCL-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP22,
or try a keyword search, such as Power Field-Effect Transistors
