DMP3007SCG-7 - Diodes Incorporated

Description: MOSFET P-Ch 30V 50A Enhanc. V-DFN3333-8

Download DMP3007SCG-7 Model

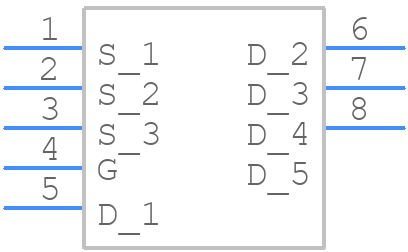

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP3007SCG-7 - Diodes Incorporated PCB footprint - Other - Other - V-DFN3333-8 (Type B)
click to zoom
3D Models
DMP3007SCG-7 - Diodes Incorporated  - 3D model - Other - V-DFN3333-8 (Type B)
click to zoom

DMP3007SCG-7 Details

  • Manufacturer Part Number:

    DMP3007SCG-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    V-DFN3333-8, 8 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    130 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    50 A

  • Drain-source On Resistance-Max:

    0.0068 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    305 pF

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.4 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMP3007SCG-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good heat dissipation.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to achieve this.
  • Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage. Avoid touching the device pins or exposing it to static electricity.
  • The device is rated for operation up to 150°C. However, the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • Use a systematic approach to troubleshoot issues, checking the power supply, input voltage, and biasing circuit. Verify that the device is properly soldered and that there are no signs of physical damage or contamination.
