DMP3007SPS-13 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 25V-30V

Download DMP3007SPS-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

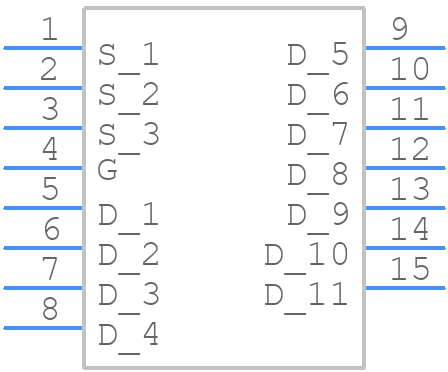

Symbol
DMP3007SPS-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DMP3007SPS-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8
click to zoom
3D Models
DMP3007SPS-13 - Diodes Incorporated - 3D model - Other - PowerDI5060-8
click to zoom

DMP3007SPS-13 Details

  • Manufacturer Part Number:

    DMP3007SPS-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    130 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    90 A

  • Drain-source On Resistance-Max:

    0.007 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    305 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    80 W

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMP3007SPS-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat. The copper area should be at least 1 inch x 1 inch in size and connected to a ground plane to ensure good thermal conductivity.
  • The device requires a bias voltage of 5V to 15V, and the input voltage should be decoupled with a 10uF capacitor to ensure stable operation. Additionally, the input voltage should be filtered to prevent noise and ripple.
  • The maximum current rating for the DMP3007SPS-13 is 3A. However, it's recommended to derate the current to 2.5A for continuous operation to ensure reliability and prevent overheating.
  • It's recommended to use a voltage regulator to regulate the input voltage and prevent overvoltage conditions. Additionally, a current limiting resistor or a fuse can be used to prevent overcurrent conditions.
  • The operating temperature range for the DMP3007SPS-13 is -40°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate the device within a temperature range of 0°C to 125°C for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMP3007SPS-13 Overview

Use the download button to access the DMP3007SPS-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP30, or try a keyword search, such as Power Field-Effect Transistors
