A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to the Diodes Incorporated application note AN-114 for more details.
The DMP3017SFG-7 requires a bias voltage of 5V to 15V. Ensure the input voltage is within this range and the output is properly terminated to maintain a stable output voltage. Refer to the datasheet for specific biasing requirements.
The DMP3017SFG-7 is rated for operation from -55°C to 150°C. However, the device's performance may degrade above 125°C. Ensure proper thermal management to maintain optimal performance.
The DMP3017SFG-7 is an industrial-grade device, but it is not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with specific automotive or high-reliability certifications, such as AEC-Q100 or MIL-STD-883.
The DMP3017SFG-7 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-safe environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP3017SFG-7 Overview

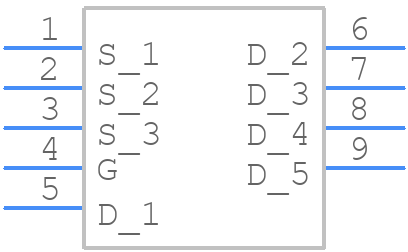

Use the download button to access the DMP3017SFG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP30,
or try a keyword search, such as Power Field-Effect Transistors
