DMP3018SFK-7 - Diodes Incorporated

Description: MOSFET P-Ch Enh Mode FET Vdss -30V 25Vgss

Download DMP3018SFK-7 Model

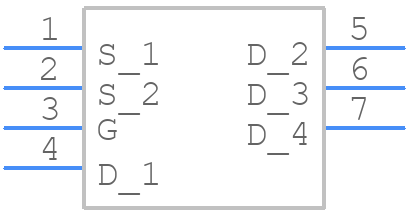

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP3018SFK-7 - Diodes Incorporated PCB footprint - Other - Other - U-DFN2523-6
click to zoom
3D Models
DMP3018SFK-7 - Diodes Incorporated  - 3D model - Other - U-DFN2523-6
click to zoom

DMP3018SFK-7 Details

  • Manufacturer Part Number:

    DMP3018SFK-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    U-DFN2523-6, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    104 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7.7 A

  • Drain-source On Resistance-Max:

    0.0145 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    686 pF

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    17 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    170 ns

  • Turn-on Time-Max (ton):

    45 ns

DMP3018SFK-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat. The copper area should be at least 1 inch x 1 inch in size and should be connected to a ground plane to minimize thermal resistance.
  • The device requires a bias voltage of 5V to 15V. Ensure that the input voltage is within this range and that the bias pin is properly decoupled with a 10uF capacitor to prevent oscillations.
  • The maximum current rating for the DMP3018SFK-7 is 3A. Exceeding this current may cause the device to overheat or fail.
  • Use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins to prevent damage from electrostatic discharge.
  • The recommended operating temperature range for the DMP3018SFK-7 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
