The recommended PCB footprint for the DMP3018SFVQ-13 is a QFN-16 package with a 3x3mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask layout.
To ensure proper biasing, connect the VCC pin to a stable 1.8V to 5V power supply, and the GND pin to a solid ground plane. Additionally, decouple the VCC pin with a 1uF ceramic capacitor to reduce noise and ensure stable operation.
The maximum current rating for the DMP3018SFVQ-13 is 1.5A. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation and minimize thermal stress.
To protect the DMP3018SFVQ-13 from ESD damage, handle the device by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Additionally, ensure the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.
The thermal resistance of the DMP3018SFVQ-13 is 35°C/W (junction-to-ambient) and 10°C/W (junction-to-case). Proper thermal design and heat sinking are crucial to ensure reliable operation and prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP3018SFVQ-13 Overview

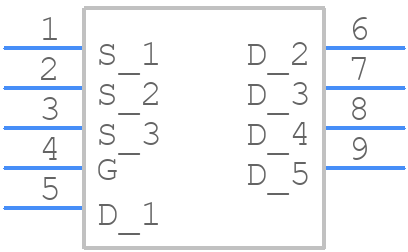

Use the download button to access the DMP3018SFVQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP30,
or try a keyword search, such as Power Field-Effect Transistors
