A good PCB layout for the DMP4011SPSQ-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure proper biasing, connect the gate to a voltage source through a 1kΩ to 10kΩ resistor, and the source to ground through a 10Ω to 100Ω resistor. The drain should be connected to a load or a voltage source.
Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials. Avoid touching the device's pins or exposed die, and use a wrist strap or mat to discharge static electricity.
Yes, the DMP4011SPSQ-13 is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and ensure the device is properly derated for the specific application.
The device has a junction-to-case thermal resistance of 2.5°C/W. Ensure good thermal contact between the device and the heat sink, and consider using a thermal interface material to minimize thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP4011SPSQ-13 Overview

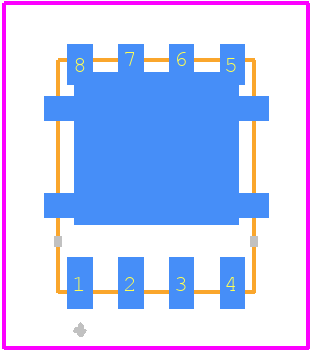

Use the download button to access the DMP4011SPSQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP40,
or try a keyword search, such as Power Field-Effect Transistors
