DMP4013LFGQ-13 - Diodes Incorporated

Description: P-Channel 40 V 10.3A (Ta) 1W (Ta) Surface Mount PowerDI3333-8

Download DMP4013LFGQ-13 Model

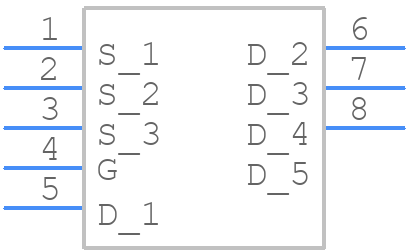

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP4013LFGQ-13 - Diodes Incorporated PCB footprint - Other - Other - POWERDI® 3333-8
click to zoom
3D Models
DMP4013LFGQ-13 - Diodes Incorporated  - 3D model - Other - POWERDI® 3333-8
click to zoom

DMP4013LFGQ-13 Details

  • Manufacturer Part Number:

    DMP4013LFGQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    58 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    10.3 A

  • Drain-source On Resistance-Max:

    0.013 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    235 pF

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.1 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101; IATF 16949; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMP4013LFGQ-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the DMP4013LFGQ-13 to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the device is properly biased, make sure to follow the recommended biasing circuit shown in the datasheet. This typically involves using a voltage regulator to provide a stable voltage supply, and using resistors to set the gate-source voltage and drain-source voltage within the recommended operating range.
  • When handling the DMP4013LFGQ-13, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and handling the device by the body rather than the pins. Also, avoid touching the pins or exposing the device to moisture or extreme temperatures.
  • To determine the maximum power dissipation of the DMP4013LFGQ-13 in your specific application, you need to calculate the total power dissipation based on the voltage and current ratings, as well as the thermal resistance of the device and the PCB. You can use the thermal resistance values provided in the datasheet and the power dissipation equations to calculate the maximum power dissipation.
  • When paralleling multiple DMP4013LFGQ-13 devices, key considerations include ensuring that each device has its own gate resistor and that the devices are properly matched in terms of threshold voltage and transconductance. Additionally, the PCB layout should be designed to minimize current imbalance and thermal mismatch between devices.
